30W 150LM/W Anti-glare UGR<19 CE/RoHS/CB/SAA approved led spotlight
- General Information
- Feature

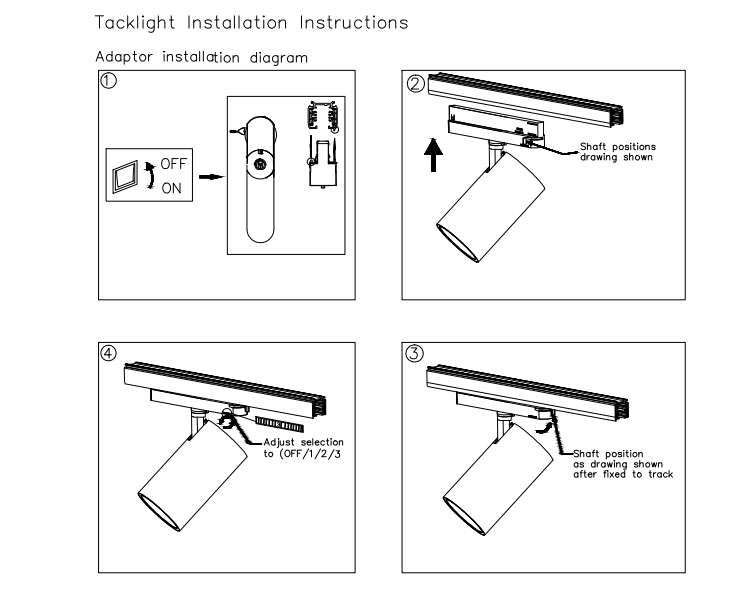

- Installation
- Download
Led Spotlight Track Lighting General Information
| Power | 30W |
| Housing Material | Die-Casting Aluminum |
| Housing Color | Black(9011)/White(9016) |
| Housing Size | 93*115*135mm |
| Light Source Brand | Luminus |
| CCT | 2700/3000/3500/4000/5000/5700K |
| Driver Brand | Global /Powergear |
| High Efficency Angle | 20/30/45/60° (98% reflectivity) |
| UGR | 19 |
| Warranty | 5years |
| Track Adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 14Pcs/CTN GW16Kg |
| Carton Size | 60*25*33.5cm |
Lighting Feature
| Power | CCT(nom) | Color Rendering Index | SDCM | NOM Luminous Flux(Efficient ) | Light Decay(10000hs) |
| 30W | 3000K | CRI>80 | <3 | 4300LM(143lm/w) | <3% |
| 4000K | CRI>80 | <3 | 4500LM(150lm/w) | <3% |
Operating and Electrical
| Power | 30W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | 0-10V/Triac/Dali/Casmbi |
Led Spotlight Track Lighting Decription
As you know,Shenzhen powerstar technology limited company can produce the good quality tracklight.We are a good tracklgiht factory .Our company set sales and produce and research in one .We pay attention to research the high end tracklight for our customers .Our tracklight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty.And we passed the CE/RHOS certification .You can trust my tracklight quality.
Led Spotlight Track Lighting Temperature Test
Temperature
The testing is operated at 25℃
The lifetime of capacitor,minimum of 8000 hours if operated at 105,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led junction temperature 150℃
LM21&LM80
