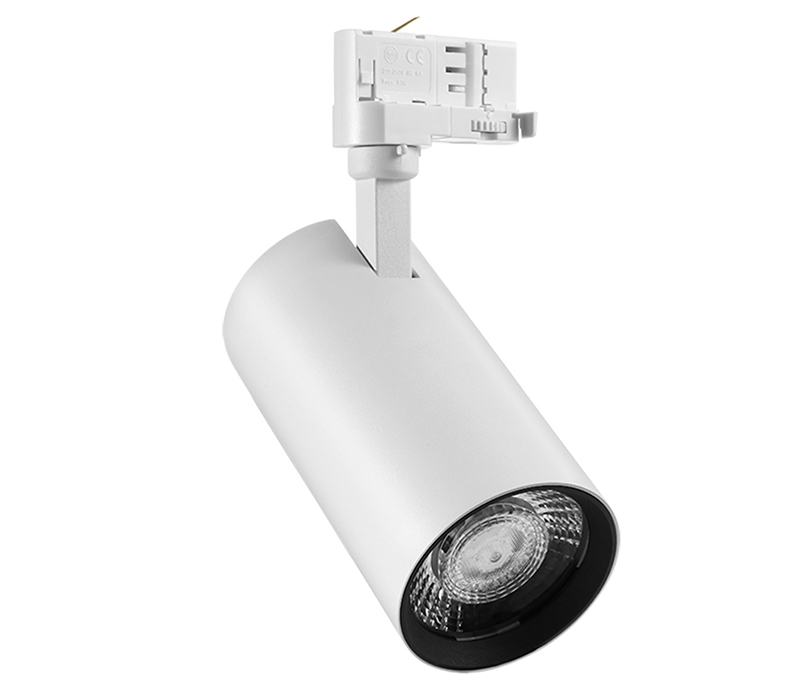

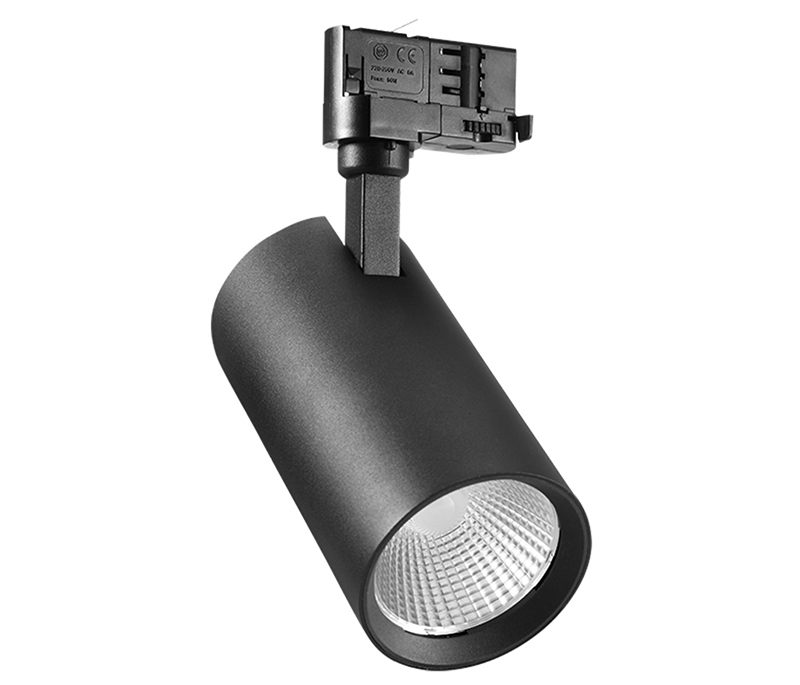

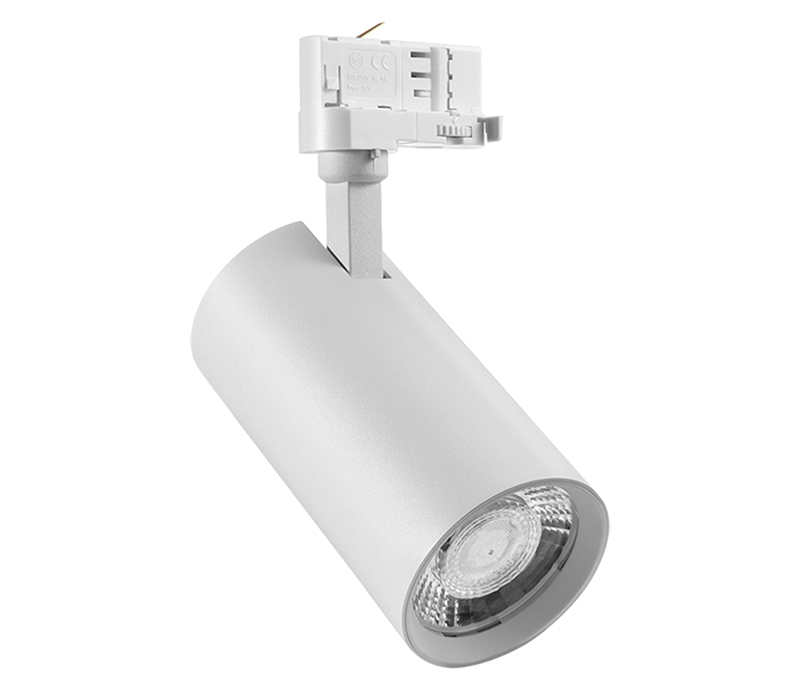

30w darklight ugr <15 anti glare led track light
- General Information
- Feature

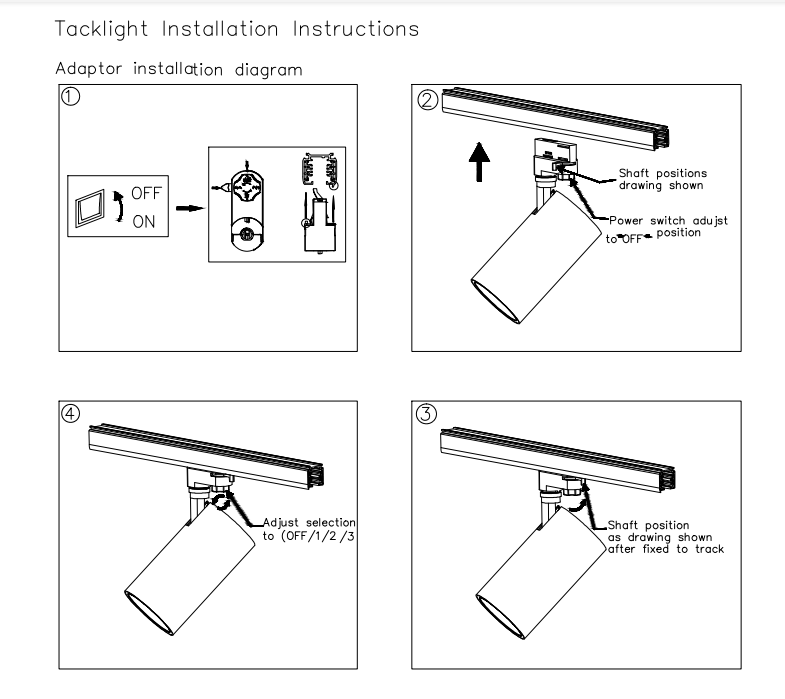

- Installation
- Download
General Information
| Power | 30W |
| Housing Material | Die-Casting Aluminum |
| Housing Color | Black(9011)/White(9016) |
| Housing Size | 80x155mm |
| Light Source Brand | Citizen/Cree/Luminus COB |
| CCT | 2700/3000/3500/4000/5000/5700K |
| Driver Brand | Boke/Archi |
| Beam Angle | 15/24/38/60° Reflector |
| UGR | <15 |
| Warranty | 5years |
| Track Adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 15Pcs/CTN GW12.5Kg |
| Carton Size | 44.5*27.5*25cm |
Lighting Feature
| Power | CCT(nom) | Color Rendering Index | SDCM | NOM Luminous Flux(Efficient ) | Light Decay(10000hs) |
| 30W | 3000K | CRI>80 | <3 | 3100 LM(103 lm/w) | <3% |
| CRI>90 | <3 | 2700 lm(90 lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 3300 LM(110 lm/w) | <3% | |
| CRI>90 | <3 | 2940 lm(98 lm/w) | <3% |
Operating and Electrical
| Power | 30W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
Decription
We are led tracklight supplier. We have 8 years professional expenriences in led industry. We foucs on the tracklight for three years. We researched seven types tracklight recently. Our tracklight factory can make CRI80/90/97 tracklight. Use CRI 97 special tracklight can make the objects looks more real and beautiful. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.
Temperature Test
Temperature
The testing is operated at 25℃
The lifetime of capacitol ,minimum of 8000 hours if operated at 105℃,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led juncton temperature is 150℃
LM21&LM80
