UGR < 15 Anti-glare 30w lighting soluitons
Full Product Code:PS-DL-30W-8'-A9- General Information
- Feature
- Installation
- Download
Decription
We are led donwlight supplier in china.We have 8 years professional expenriences in led industry. We has foucsed on the downlight for 8 years .We researched servel type donwlight recently, Our donwlight factory can make CRI80/90donwlight. Our donwlight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide 3 years warranty. And we passed the CE/RHOS certification. You can trust my donwlight quality .
General Information
| Model | PSDL10A94 | PSDL20A96 | PSDL30A98 |
| Power | 10w | 20w | 30w |

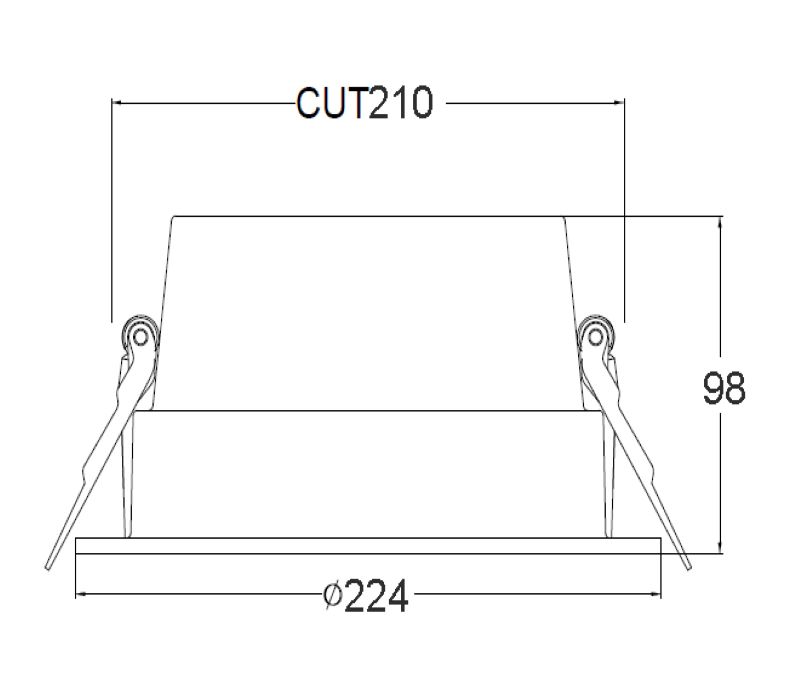

| Cut Hole | 115-120mm | 165-175mm | 195-210mm |
| Housing Size | D135*66mm | D190*H90mm | D224*H98mm |
| Housing Material | Die-Casting Aluminum | ||
| Housing Color | White | ||
| Light Source | SMD2835 | ||
| CCT | 2700/3000/3500/4000/5000/5700k | ||
| Driver Brand | Tridonic/Osram/Philips/Boke | ||
| Reflector Options | Matt sliver /Silver/Black | ||
| Beam Angle | 70 | ||
| Warranty | 5years | ||
| Test Information | Test ball, IES/Ldt | ||
| Storage Temperature | Minus40 65 | ||
| Working Temperate | Minus20 45 | ||
| IP Classs | IP44 | ||
| Application | Indoor | ||
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 10-30w | 3000K | Ra>80 | <3 | 101lm/w |
| Ra>90 | <3 | 98lm/w | ||
| 4000K | Ra>80 | <3 | 101lm/w | |
| Ra>90 | <3 | 98lm/w |
Operating and Electrical
| Power | 10-30w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS/TUV |
| Dimmable | 0-10V/Triac/dali/casmbi/tuya/bluetoothmesh/zigbee/dmx512/wifi/2.4G/RF |
| Life Time | 64000hrs |
l Deep hole design Low ugr design anti glare downlight ,ugr less 19 with comfort light output
l 9-40w watt available .different size can meet different lighting project require
l Reflector have silver ,matt silver ,black color three options .Black color is more popular
l Chip use Philips brand smd 2835 ,70degree beam angle
l CCT have 2700k to 6500k ,applied in more lighting scene .

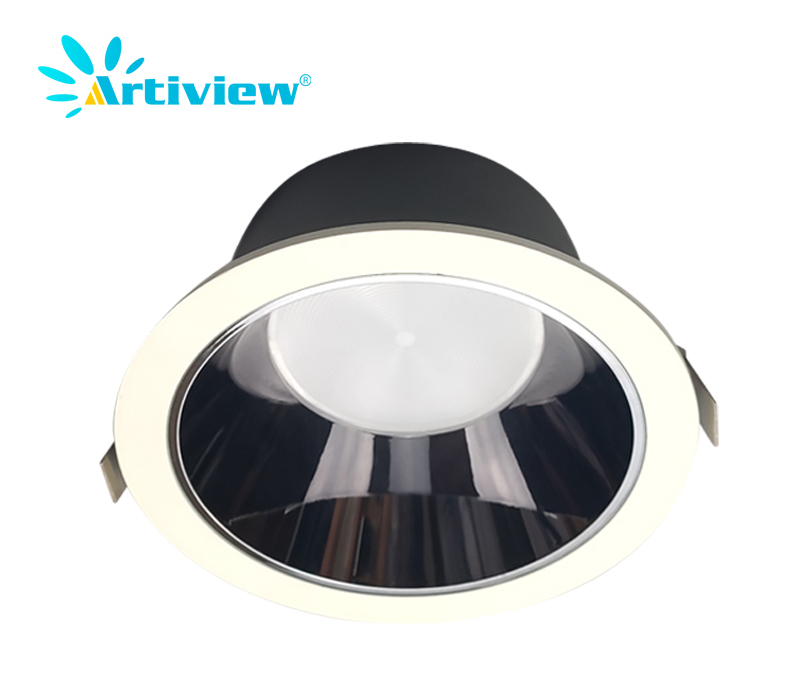

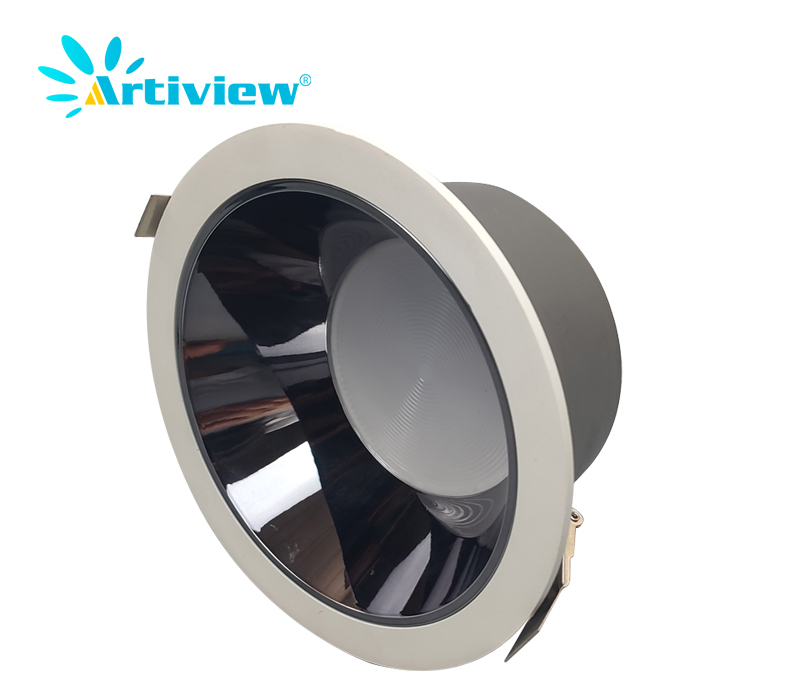

Deep hole black reflector downlight spot ,low ugr less 19 for your lighting project which people need to stay for there long time .By using this anti glare lamp ,It has uniform light output and no hurt to eyes .lighting also will give you comfortable atmosphere and living space .
This lighting fit using philips high end chip and normally do 9-40w, beam angle specially do 70 degree .This lighting has good heat dissipation ,recessed spring install ,lighting housing color we choose white frame and grey heat sink back .more client like that design .
For office lighting or indoor commercial lighting , we recommend a UGR level of 16 to 19, ensuring comfortable workplace illumination. For industrial environments, UGR levels of 22 to 25 are ideal. For the guidance on UGR levels, Anything higher than UGR>28 is considered bad practice.
Installation
1.Turn off the power.
2.Cut the hole per spec of downlight.
3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling
6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.
WARNING
*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of electric shock or light falling.
