35w THD<10 zigbee cct changeable led track lighting
- General Information
- Feature
- Installation
- Download
General Information
| Power | 35W |
| Housing material | Die-casting Aluminum |
| housing Color | Black/White |

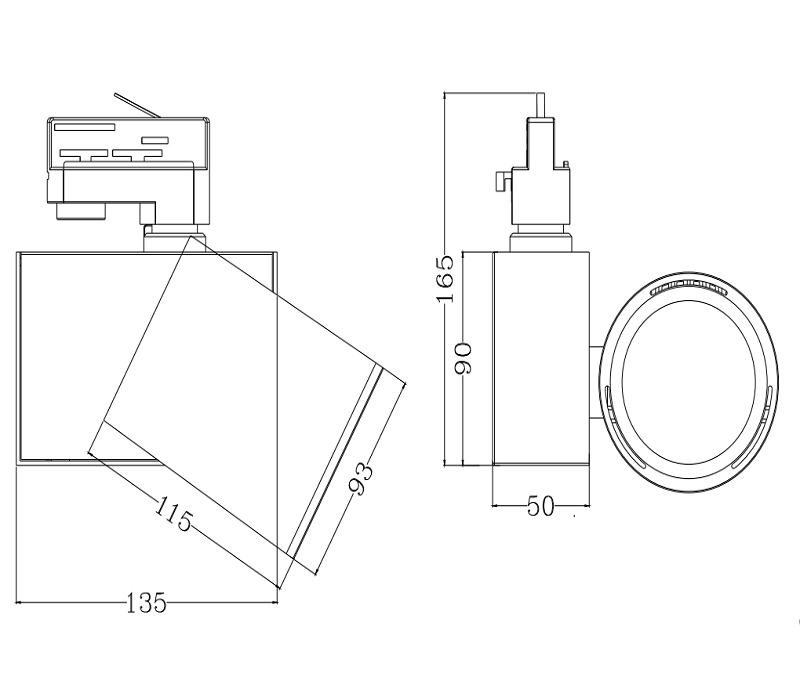

| Housing size | 93*115*135mm |
| LIGHT source brand | Citizen/Luminus/Cree COB |
| CCT | 2700-5700k changeable |
| Standard Beam angle | 15/24/38/60° (90% reflectivity ) |
| High efficency angle | 20/30/45/60° (98% reflectivity) |
| UGR | 19 |
| Warranty | 5years |
| Track adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/cartons | 10PCS/CTN GW16Kg |
| Carton size | 55*53.5*29.5cm |
Lighting Feature
| power | CCT | CRI | SDCM | Luminous Flux |
| 35W | 3000K | Ra>80 | <3 | 3850LM(110lm/w) |
| Ra>90 | <3 | 3780lm(108lm/w) | ||
| Ra>97 | <3 | 3500lm(100lm/w) | ||
| 4000K | Ra>80 | <3 | 4060LM(116lm/w) | |
| Ra>90 | <3 | 3850lm(110lm/w) | ||
| Ra>97 | <3 | 3675lm(105lm/w) |
Operating and Electrical
| Power | 35W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Dimmable | Zigbee dimming controller |
Decription
As you know,Shenzhen powerstar technology limited company can produce the good quality tracklight.We are a good tracklgiht factory .Our company set sales and produce and research in one .We pay attention to research the high end tracklight for our customers .Our tracklight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty.And we passed the CE/RHOS certification .You can trust my tracklight quality.
Zigbee control CCT tunable LED track light, ZigBee is an international common protocol with strong compatibility, wireless control of lighting fixtures, including remote control and mobile control; The multiple encryption operation has high security.
Mutiple dimming ways for Tunable white led track light
Tunable white track light used CRI>90 led chip and flicker free driver, the color of light is very uniform, comfortable and healthy, the control ways have RF/DMX512/BLE....., customer can adjust the beam angle and the color by arbitrary switching.
The figure of temperature rise
Temperature
The testing is operated at 25℃
The lifetime of capacitor,minimum of 8000 hours if operated at 105,will be doubled whenever the temperature drops 10℃
The highest withstand temperature of IC,MOS could be 120℃
The highest withstand temperature of led junction temperature 150℃
LIGHT LM21&LM80
