50w anti-glare gimble led downlight
Full Product Code:PS-GDL-6''-50W- General Information
- Feature

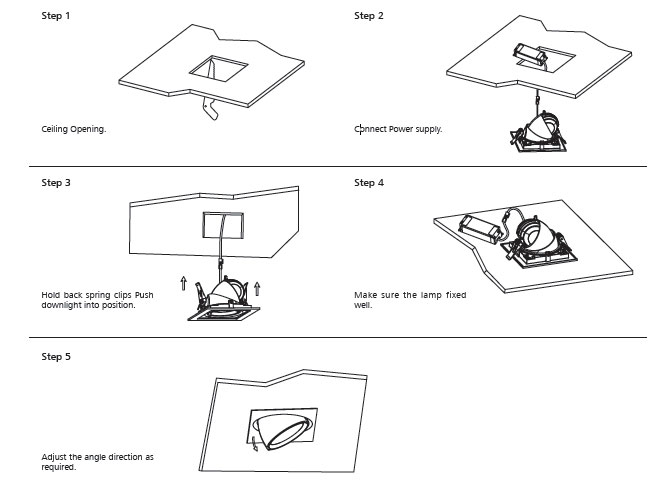

- Installation
- Download
Decription
Shenzhen powerstar technology limited company is an professional downlight supplier in china. This hot sale 355 rotation gimmable led downlight is special downlight. It is spread used in the shopping mall or clothes shop etc commercial area. Our downlight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we has passed the CE/RHOS/GS/TUV certification .You can trust my downlight quality.
General Information
| Power | 12W | 15W | 20W | 25W | 30W | 40W | 50W |
| Housing material | AL | ||||||
| housing Color | white | ||||||
| Housing size | 90*60mm | 102*80mm | 125*108mm | 140*115mm | 160*135mm | 190*160mm | 190*160mm |
| Housing Max temperature (nom) | 65 | ||||||
| Light source | COB | ||||||
| LIGHT source brand | Citizen/Cree/Luminus | ||||||
| CCT | 2700/3000/3500/4000/5000/5700k | ||||||
| Driver Brand | Tridonic/Osram/Philips/Boke | ||||||
| Optics type | Reflector | ||||||
| Beam angle | 15/24/38° | ||||||
| Warranty | 5years | ||||||
| Test information | test ball, IES/Ldt | ||||||
| Storage temperature | minus40 65 | ||||||
| Working Temperate | minus20 45 | ||||||
| IP Classs | IP44 | ||||||
| Application | indoor | ||||||
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
12W 15W 20W 25W 30W 40W 50w | 3000K | CRI>80 | <3 | 120lm/w |
| CRI>90 | <3 | 98lm/w | ||
| CRI>97 | <3 | 92lm/w | ||
| 4000K | CRI>80 | <3 | 123lm/w | |
| CRI>90 | <3 | 105lm/w | ||
| CRI>97 | <3 | 94lm/w |
Operating and Electrical
| Power | 12W/15W/20W/25W/30W/40W/50W |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS |
| Dimmable | 0-10V/Triac/dali/casmbi/tuya/zigbee/bluetooth mesh/dmx512/wifi/2.4G/RF |
| Life Time | 64000hrs |
LED chip we use CITIZEN COB with high brightness and low light decay, passed LM80.
Test data of LM80 and LM70 life time :

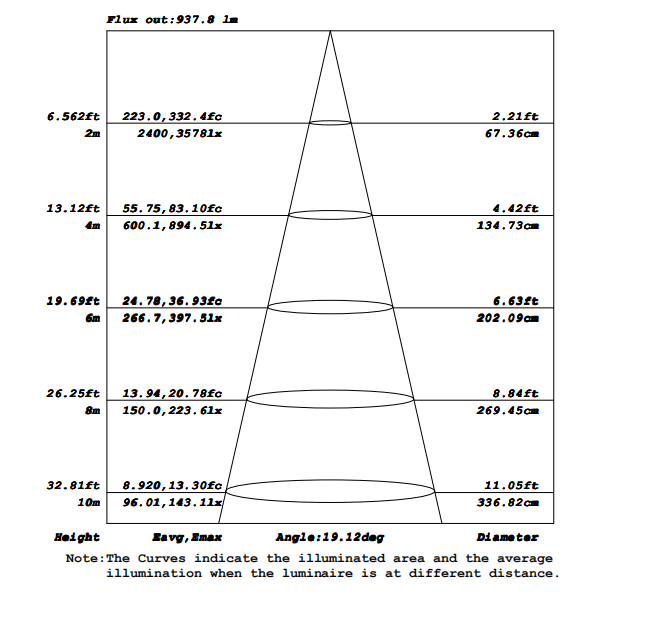

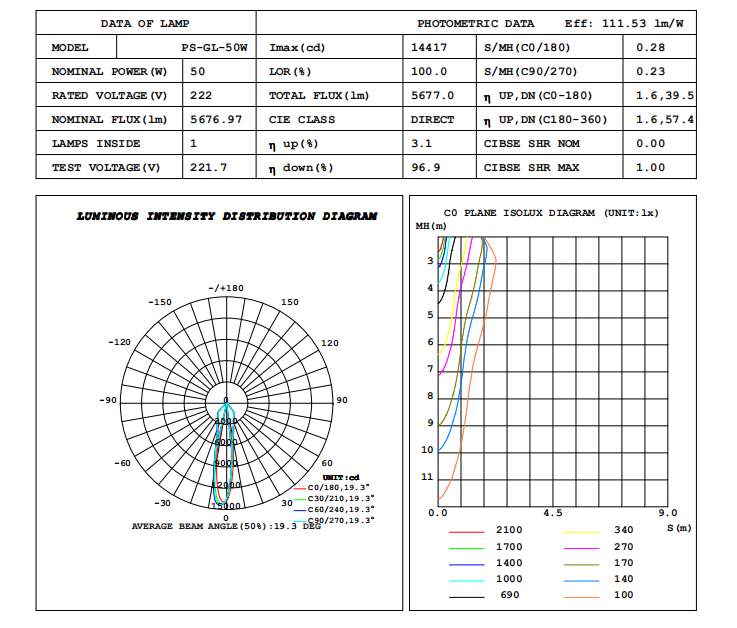

IES Test
