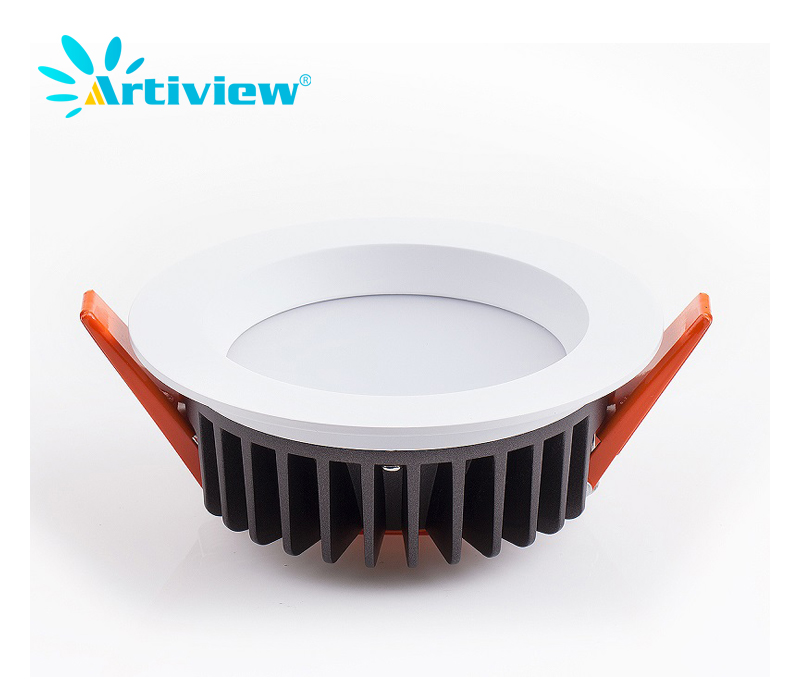

4000K 20w SMD Downlight
Full Product Code:PS-DL-6'20W-A16- General Information
- Feature
- Installation
- Download
General Information
| Power | 20w |
| Housing material | AL |
| housing Color | white |
| Cut hole | 165-170mm |

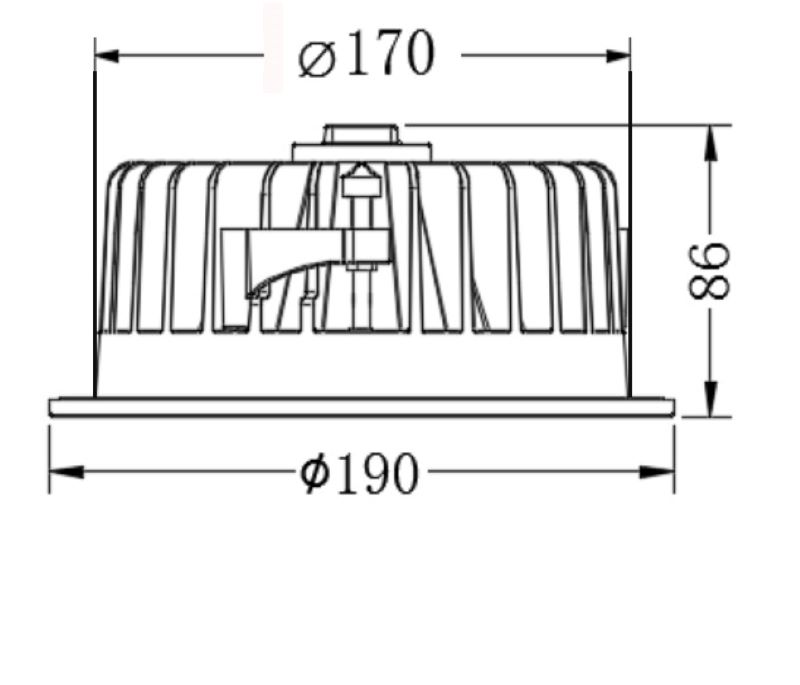

| Housing size | 190*86mm |
| Housing Max temperature (nom) | 65 |
| Light source | smd3030 |
| LIGHT source brand | original philip/osram smd |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Optics type | Diffuser |
| Beam angle | 90 |
| Warranty | 5years |
| Test information | test ball, IES/Ldt |
| Storage temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
| Qty/cartons | 12PCS |
| Carton size | 58*44*24 |
| GW/NW | 15.6kg/12.5kg |
Lighting Feature
| power | CCT(nom) | Color rendering index | SDCM | NOM Luminous Flux(efficient ) | light decay(10000hs) |
| 20w | 3000K | CRI>80 | <3 | 2060LM(103lm/w) | <3% |
| CRI>90 | <3 | 1768lm(88.4lm/w) | <3% | ||
| 4000K | CRI>80 | <3 | 2120LM(106lm/w) | <3% | |
| CRI>90 | <3 | 1800lm(90lm/w) | <3% |
Operating and Electrical
| Power | 20w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS |
| Dimmable | 0-10V/Triac/dali/casmbi/tuya/xicato/zigbee/bluetoothmesh/wifi/RF/2.4G/DMX512 |
| Life Time | 64000hrs |
Discription
Shenzhen powerstar technology limited company is an good downlight supplier in china .This type downlight we designed for project .We set sales and produce and research in one. Our downlgiht often use citizen chip.Our downlight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And our donwlight has passed TUV/SAA/CE/CB/ENEC/RoHS/GS certification. You can trust my downlight quality.

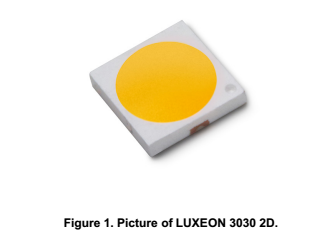

LED we use Philip/Osram SMD LED with high brightness and low light decay, passed LM80.

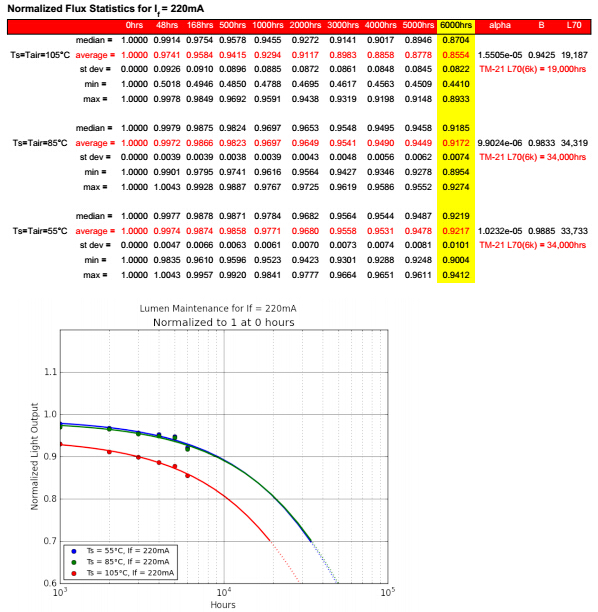

Test with 220mA in different continuous working time :

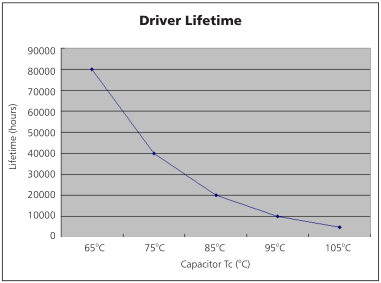

Driver lifetime & LED light decay rate

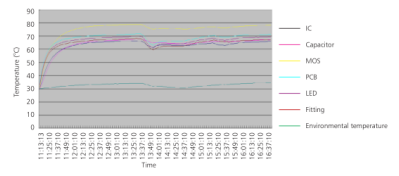

Temperature
● The testing is operated at 25°C
● The lifetime of capacitor, minimum of 5,000 hours if operated at 105°C, will be doubled whenever the temperature drops 10°C
● The highest withstand temperature of IC, MOS could be 120°C
● The highest withstand temperature of LED junction temperature is 150°C
Installation
1.Turn off the power.
2.Cut the hole per spec of downlight.
3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling
6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.
WARNING
*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of electric shock or light falling.
Power and Size Available:
Power/Watt | Size | Cutout Size | G.W(Kg)/pc | G.W/Carton (Kg) | Pcs/Carton |
15w/20w | 145*69mm | 125mm | 0.9Kgs | 27Kg | 30pcs |
20w/30w | 190*86mm | 170mm | 1.4Kgs | 21Kg | 15pcs |
30w/40w/50w | 230*99mm | 210mm | 1.9Kgs | 19Kg | 10pcs |
Packaging
Including the details as below:
Driver: 1pc
Downlight: 1pc
Catologue: 1pc
Manual: 1pc
