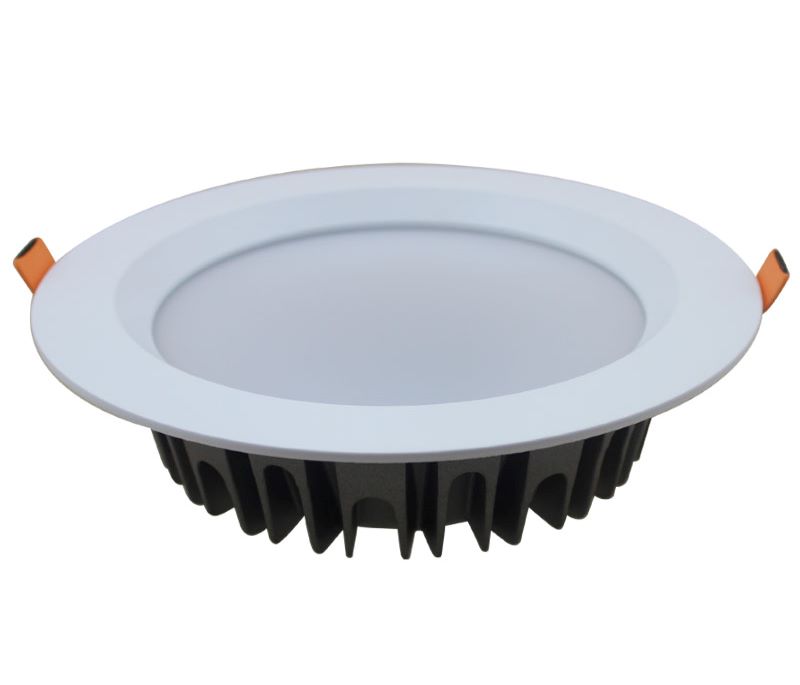

3 Years Warranty 30w LED Donwlight
Full Product Code:PS-DL-8'30W-A6- General Information
- Feature
- Installation
- Download
Decription
We are led donwlight supplier in china.We have 8 years professional expenriences in led industry. We has foucsed on the downlight for 8 years .We researched servel type donwlight recently, Our donwlight factory can make CRI80/90donwlight. Our donwlight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide 3 years warranty. And we passed the CE/RHOS certification. You can trust my donwlight quality .
General Information
| Power | 30w |
| Housing material | AL |
| housing Color | white |
| Cut hole | 200-210mm |

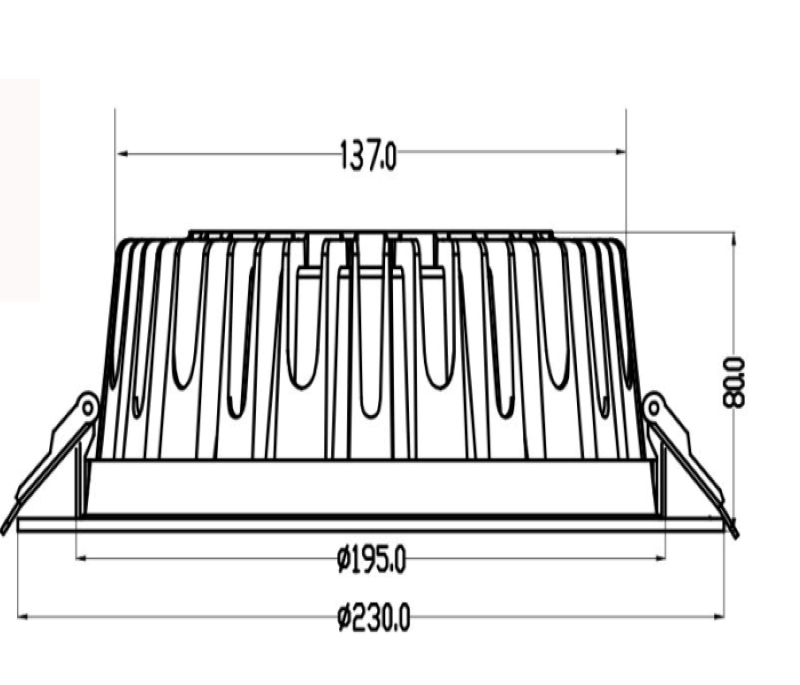

| Housing size | 230*75mm |
| Housing Max temperature (nom) | 65 |
| Light source | smd2835 |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Optics type | Diffuser |
| Beam angle | 90 |
| Warranty | 3years |
| Test information | test ball, IES/Ldt |
| Storage temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
Lighting Feature
| power | CCT | CRI | SDCM | Luminous Flux |
| 30w | 3000K | CRI>80 | <3 | 2610LM(87lm/w) |
| CRI>90 | <3 | 2490lm(83lm/w) | ||
| 4000K | CRI>80 | <3 | 2610LM(87lm/w) | |
| CRI>90 | <3 | 2490lm(83lm/w) |
Operating and Electrical
| Power | 30w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS/TUV |
| Dimmable | 0-10V/Triac/dali/casmbi/tuya/bluetoothmesh/zigbee/2.4G/WIFI/RF/DMX512 |
| Life Time | 64000hrs |
LED chip we use philips2835 smd with high brightness and low light decay, passed LM80.
Test data of LM80 and LM70 life time :
Installation
1.Turn off the power.
2.Cut the hole per spec of downlight.
3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling
6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.
WARNING
*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of electric shock or light falling.
