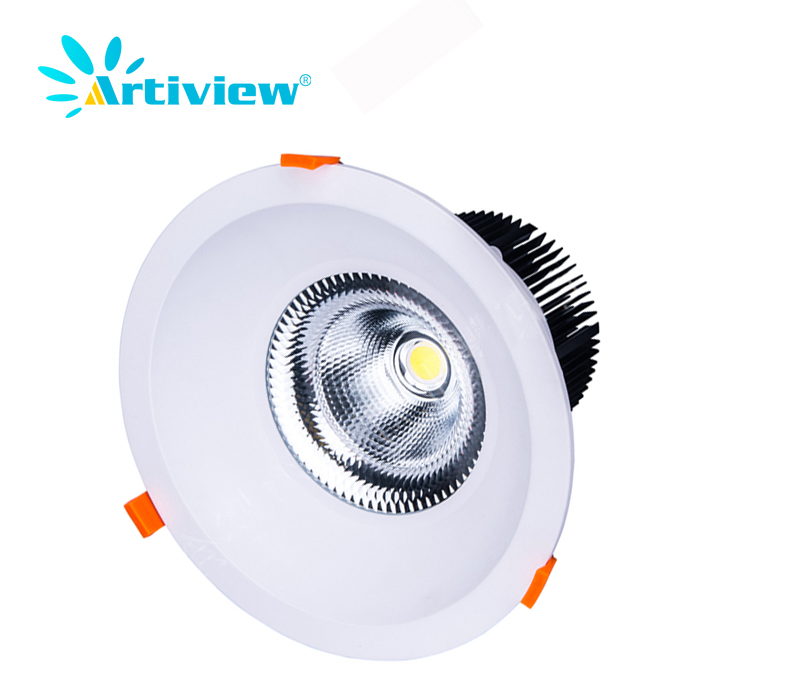

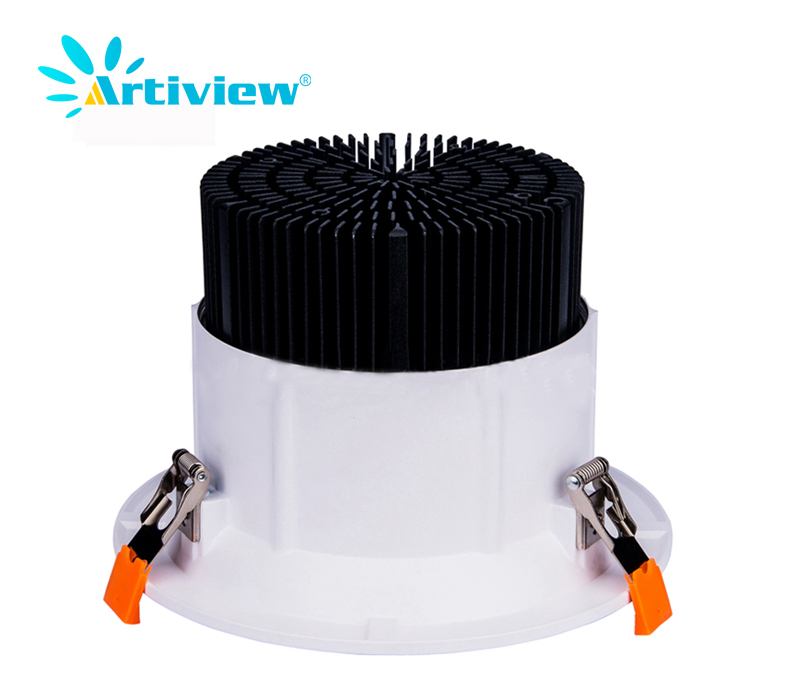

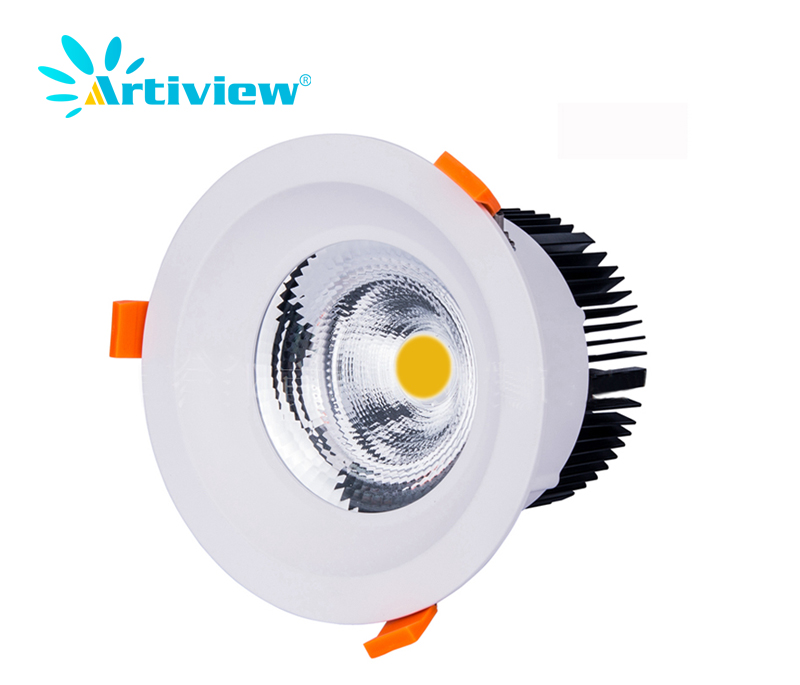

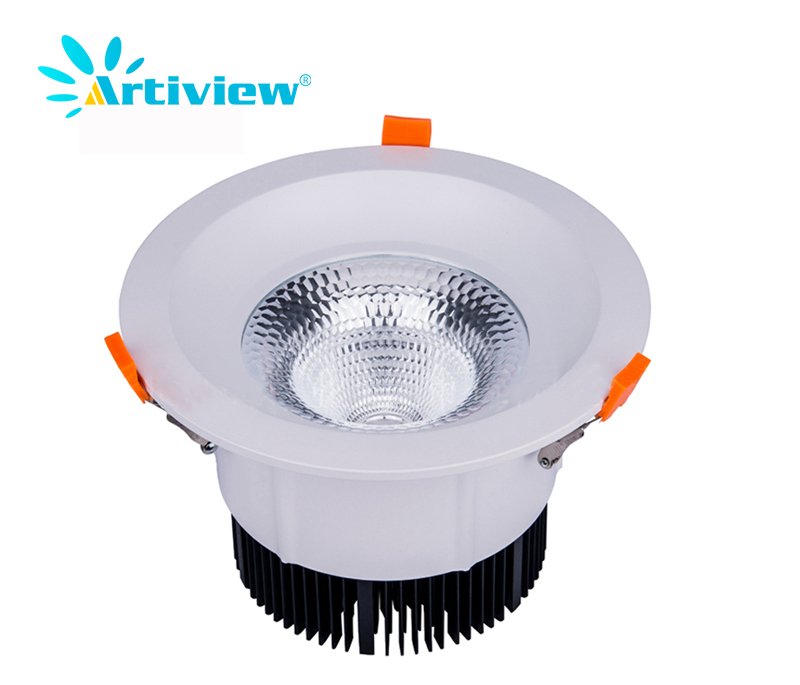

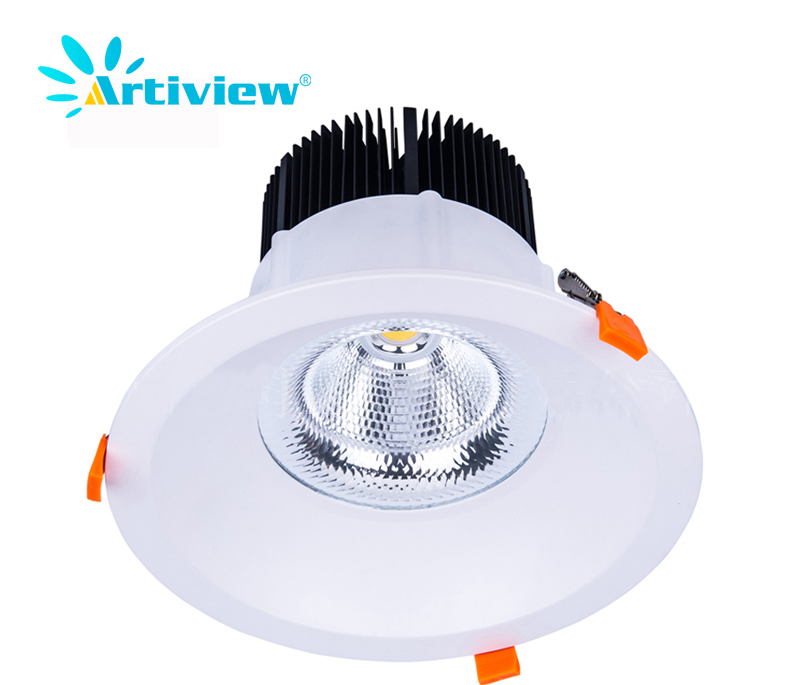

smart controller 15w LED COB downlight
Full Product Code:PS-DL-3'15W-C20- General Information
- Feature
- Installation
- Download
General Information
| Power | 15w |
| Housing material | AL |
| housing Color | white |
| Cut hole | 95mm |

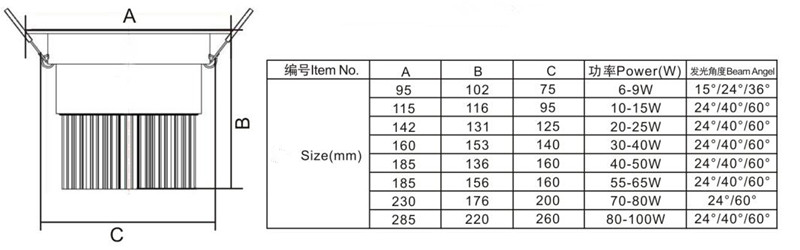

| Housing size | 115*116mm |
| Housing Max temperature (nom) | 65 |
| lighting source brand | citizen/Cree/Luminus |
| LIGHT source | COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Optics type | Reflector |
| Beam angle | 24/40/60 |
| Warranty | 5years |
| Test information | test ball, IES/Ldt |
| Storage temperature | minus40 65 |
| Working Temperate | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
Power Available
Lighting Feature
| power | CCT(nom) | CRI | SDCM | Luminous Flux |
| 15w | 3000K | Ra>80 | <3 | 118lm/w |
| Ra>90 | <3 | 95lm/w | ||
| Ra>97 | <3 | 90lm/w | ||
| 4000K | Ra>80 | <3 | 121lm/w | |
| Ra>90 | <3 | 103lm/w | ||
| Ra>97 | <3 | 93lm/w |
Operating and Electrical
| Power | 15w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS |
| Dimmable | 0-10V/Triac/dali/casmbi/tuya/zigbee/bluetooth mesh/dmx512 |
| Life Time | 64000hrs |
Decription
We are led downlight factory in china. We have 8 years professional expenriences in led industry. And we can make Dia casting aluminum deep downlight. Our downlight have high luminous and brightness. Our downlight can brighten your shop or house. Our downlight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we pass the CE/RHOS certification. You can trust my downlight quality.
LED chip we use CITIZEN COB with high brightness and low light decay, passed LM80.

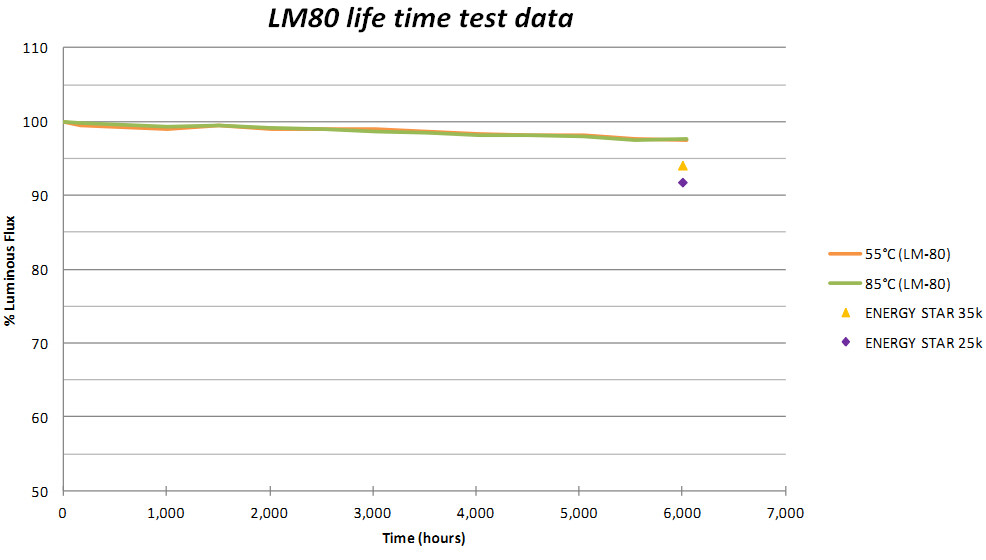

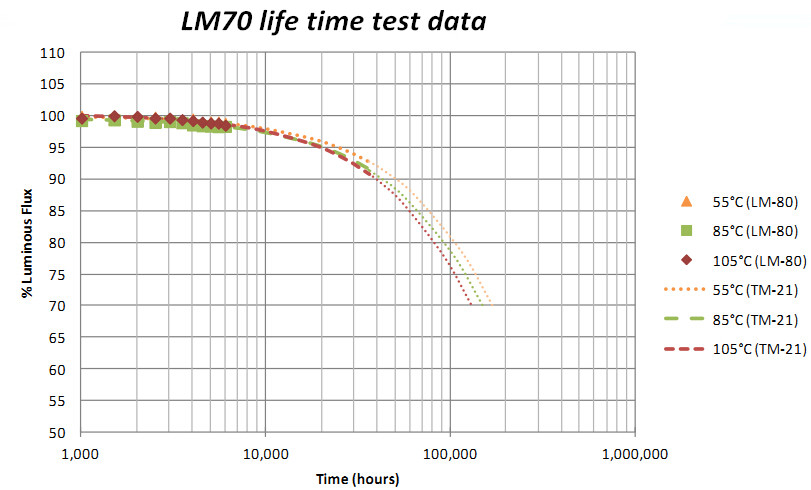

Test data of LM80 and LM70 life time :

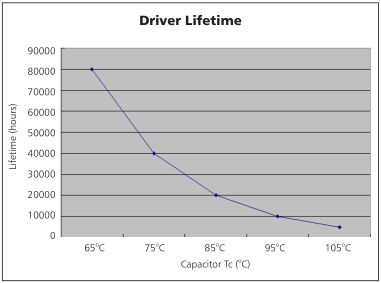

Driver lifetime & LED light decay rate

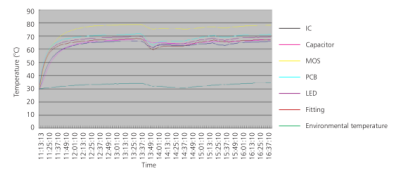

Temperature
● The testing is operated at 25°C
● The lifetime of capacitor, minimum of 5,000 hours if operated at 105°C, will be doubled whenever the temperature drops 10°C
● The highest withstand temperature of IC, MOS could be 120°C
● The highest withstand temperature of LED junction temperature is 150°C
Installation
1.Turn off the power.
2.Cut the hole per spec of downlight.
3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling
6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.
WARNING
*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of electric shock or light falling.
