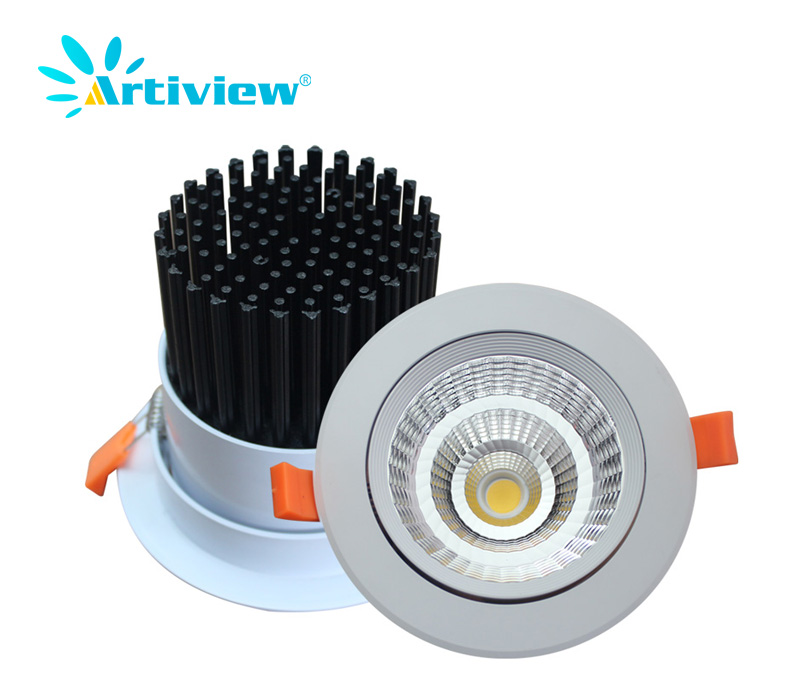

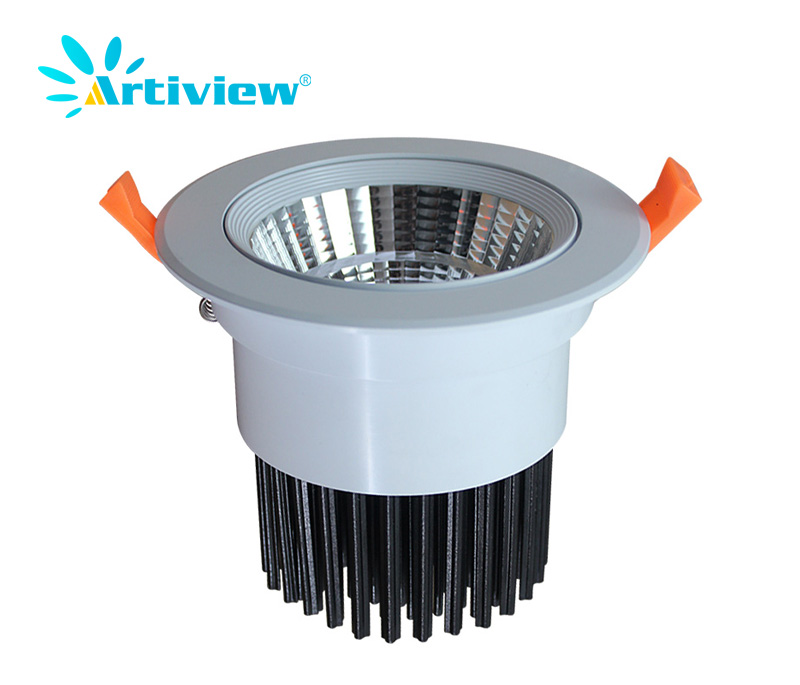

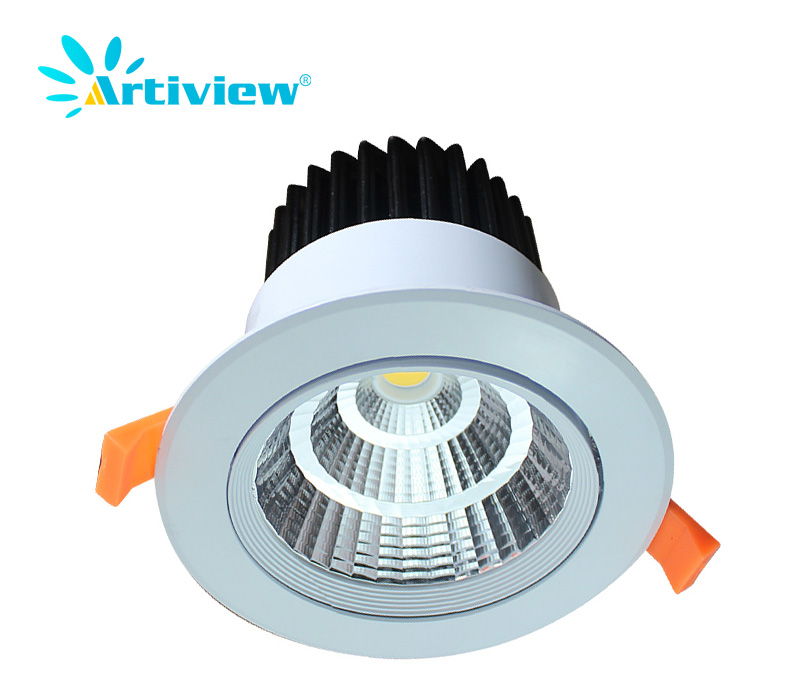

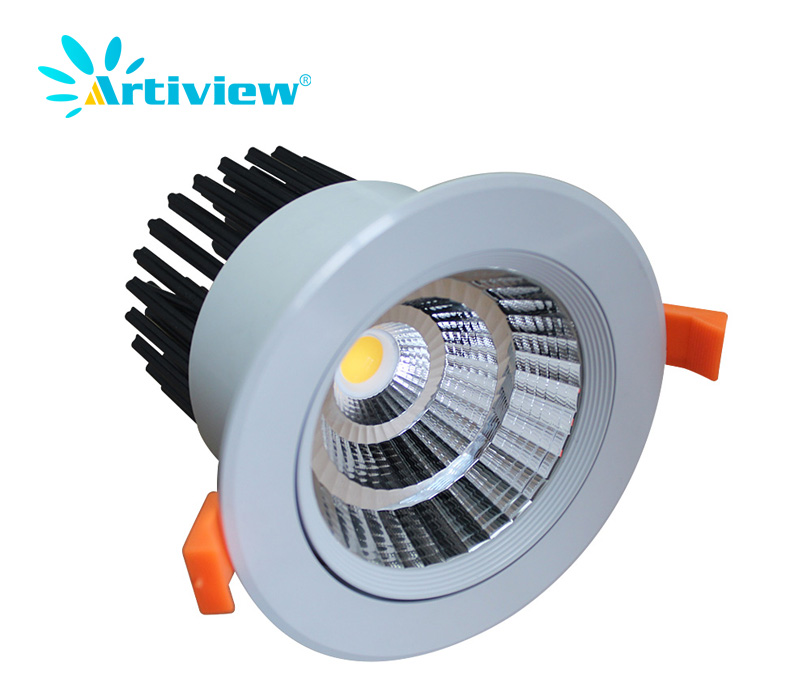

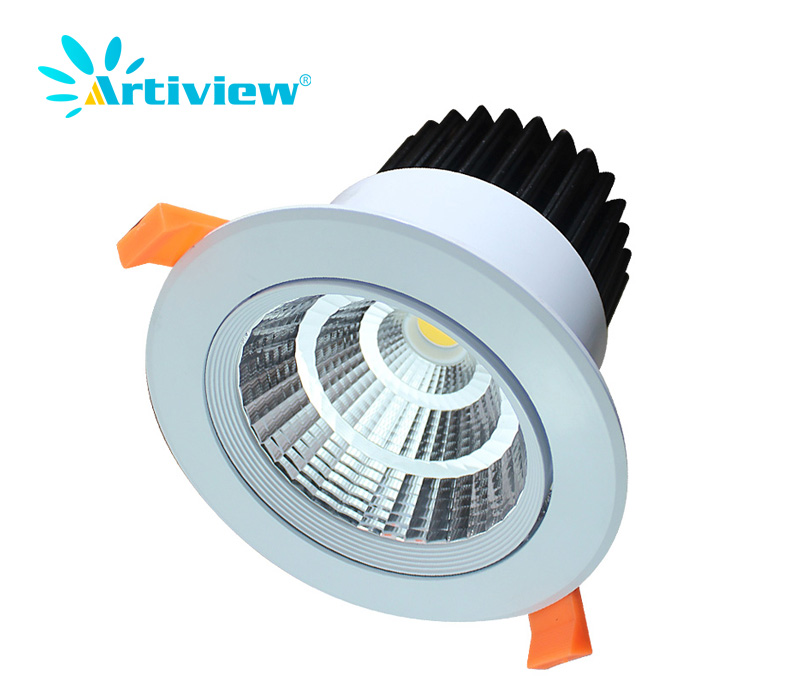

15w led adjustable spot downlight

Full Product Code:PS-DL-3'15W-C3
  • General Information
  • Feature
  • Installation
  • Download

General Information


Power 15w
Housing materialAL
housing Colorwhite
Cut hole90mm
Housing size119*103mm
Housing Max temperature (nom)65
LIGHT source COB
Lighting source brand citizen /cree/luminus
CCT2700/3000/3500/4000/5000/5700k
Driver BrandTridonic/Osram/Philips/Boke
Optics typeReflector
Beam angle15/24/38/60
Warranty5years

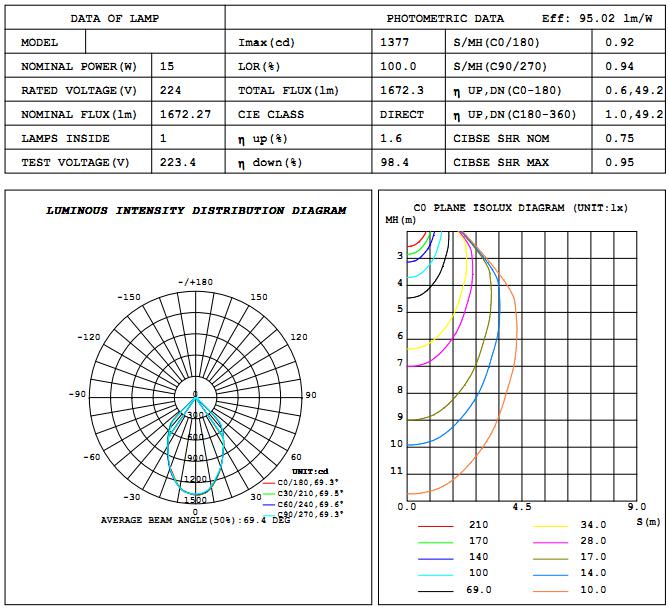

Test informationtest ball, IES/Ldt
Storage temperatureminus40     65
Working Temperateminus20     45
IP ClasssIP44
Applicationindoor



Power and Size Available

Item
PowerSize
Cut hole
PS-DL7C3L61257WD95*H59mm70mm

PS-DL12C3L613

12WD111*H88mm80mm

PS-DL15C3L6135

15WD119*H103mm90mm

PSDL20/30C3L614

20/30WD142*H118mm110mm

PS-DL40C3L615

40WD180*H129mm145mm



Lighting Feature

PowerCCTCRISDCMLuminous Flux
7-80w3000KRa>80<3124lm/w
Ra>90<3106m/w
4000KRa>80<3127lm/w
Ra>90<3108lm/w


Operating and Electrical


Power 15w
Voltage220-240v/50-60hz
PF>0.95
Power efficient0.88-0.91
THD<10/<15
FlickerYES/NO
CertificationTUV/SAA/CE/CB/ENEC/RoHS/GS
Dimmable0-10V/Triac/dali/tuya/casmbi/zigbee/bluetooth mesh/DMX512
Life Time64000hrs


Decription

Shenzhen powerstar technology limited company is an good slim downlight supplier in china .This type downlight we designed for project.We set sales and produce and research in one.Our downlgiht often use citizen chip.Our downlight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide 3 years warranty.And our donwlight has passed the CE/RHOS certification.You can trust my downlight quality.

LED chip we use CITIZEN/CREE COB with high brightness and low light decay, passed LM80.

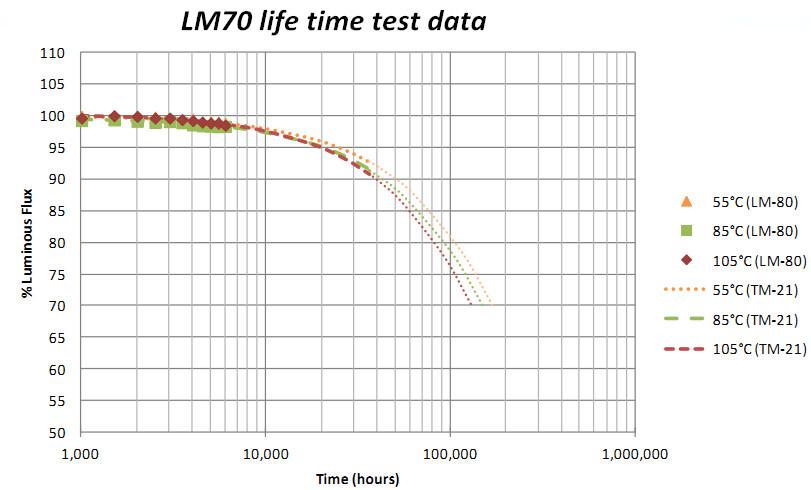

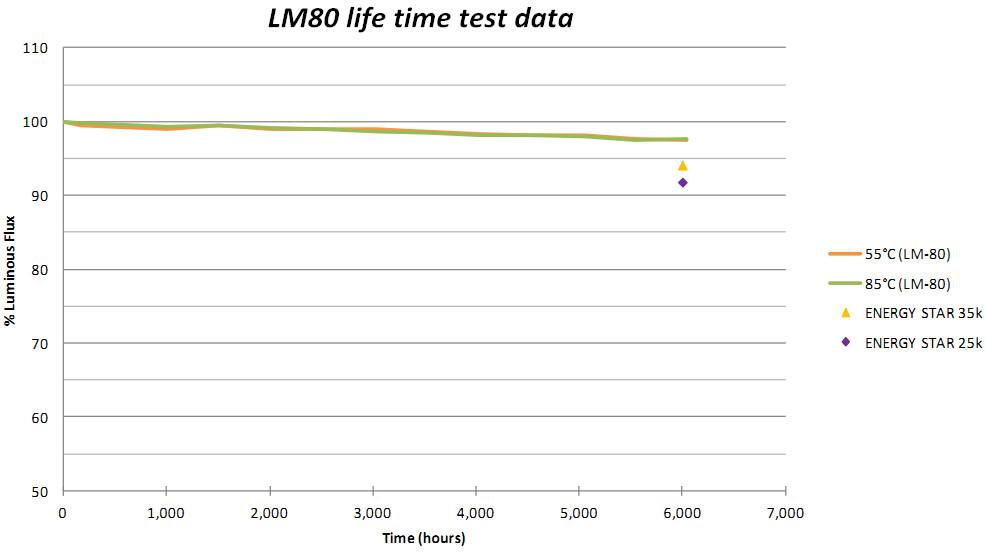

Test data of LM80 and LM70 life time :

3 Years Warranty  15w Ip44 Sdcm<3 THD<15 /10  CE/RHOS /SAA Certificate COB Downlight

3 Years Warranty  15w Ip44 Sdcm<3 THD<15 /10  CE/RHOS /SAA Certificate COB Downlight

3 Years Warranty  15w Ip44 Sdcm<3 THD<15 /10  CE/RHOS /SAA Certificate COB Downlight

3 Years Warranty  15w Ip44 Sdcm<3 THD<15 /10  CE/RHOS /SAA Certificate COB Downlight



Installation


1.Turn off the power.
2.Cut the hole per spec of downlight.

3.Take out the trim of the downlight.
4.Connect the driver to the main supply per spec  (AC85-265V / 50Hz-60Hz)
5.Put LED driver at suitable place on ceiling and push the light to the ceiling
6.Lock the screw by the electric screw driver.
7.Install the trim of the downlight and then turn on the power.

LED Downlight C16

WARNING  RGB RGBW DMX512 Zigbee tuya dimmable smart controller led spot downlight


*When install the downlight by technical professionals.
*Power should be cut off before installation,maintenance or inspection.
*Please install and use the downlight strictly according to the instruction.
*Do not disassemble or remold the product at will to avoid accident of  electric shock or light falling.
