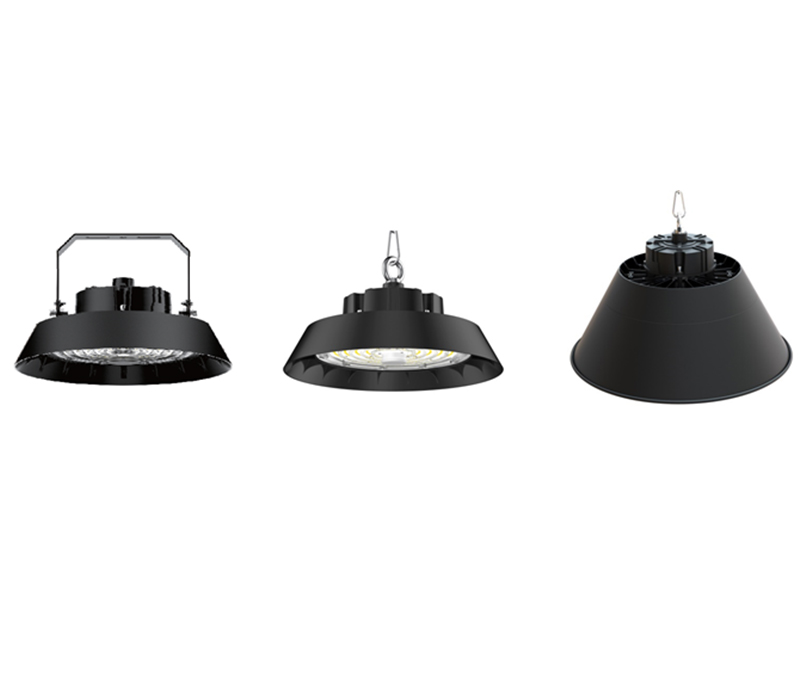

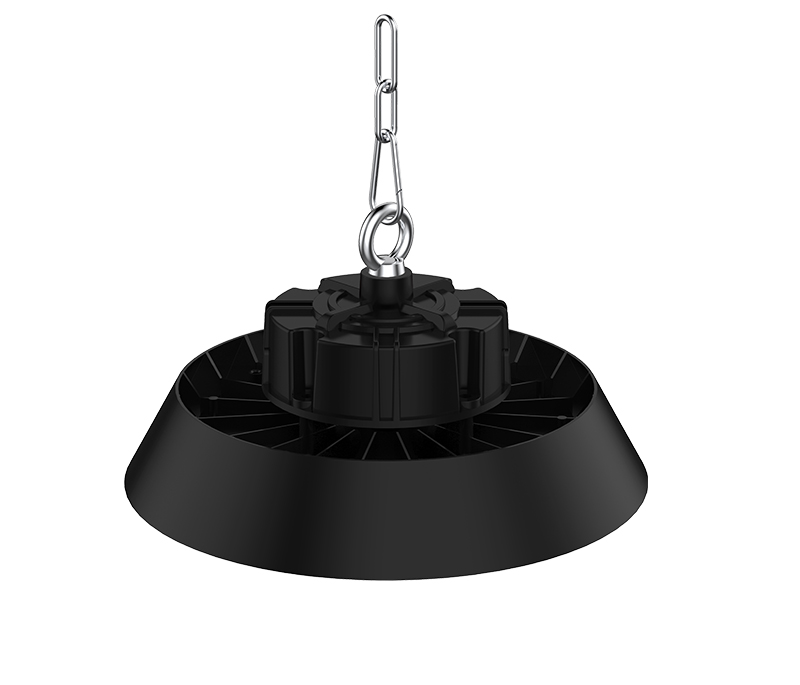

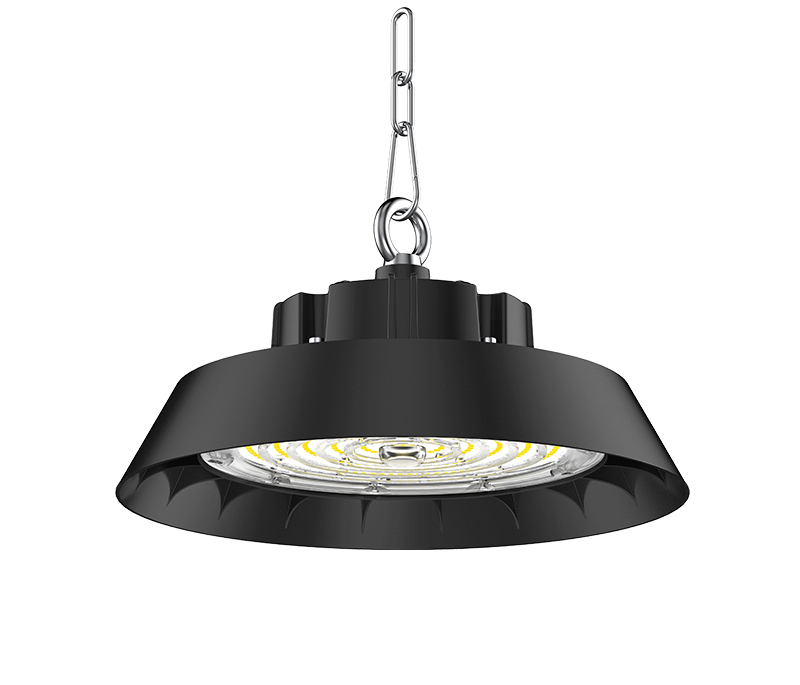

150w led UFO high bay light
Full Product Code:PS-HB150W-A Inquire Now
None
- General Information
- Feature
- Installation
- Download
Description
150W led UFO high bay light with 170lm/w, which is suitable for warehouse, factory, airport, station, subway and other places, The installation height is 8-15m.
General Information
| Power | 150W |
| Housing Material | Die-Casting Aluminum |
| Housing Color | Black(9011) |

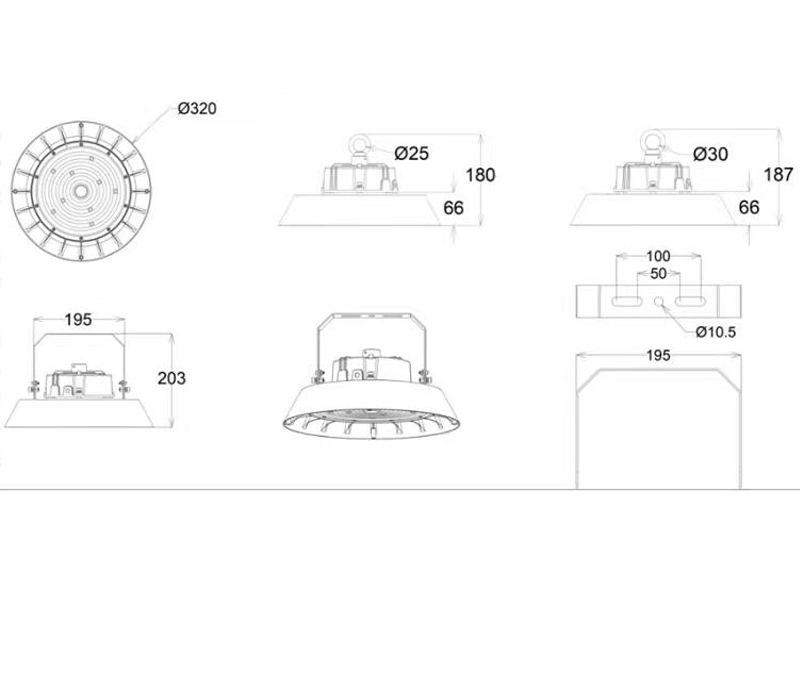

| Housing Size | 320*180*66mm |
| LIGHT Source Brand | Philips/Osram/Samsung |
| CCT | 3000/4000/5000/6500k |
| Driver Brand | Osram/Philips/Meanwell/Sosen/Inventronics |

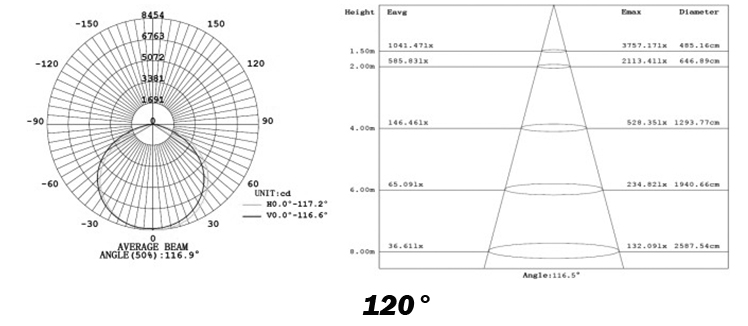

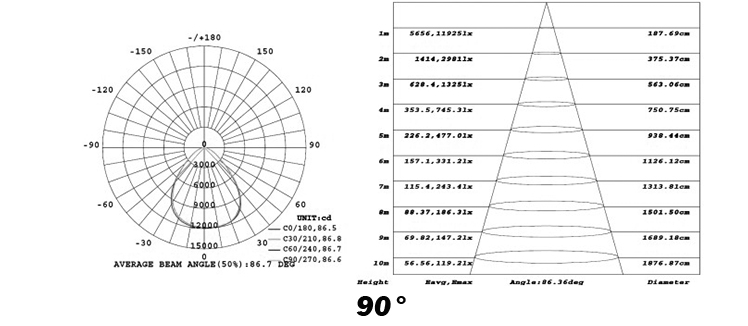

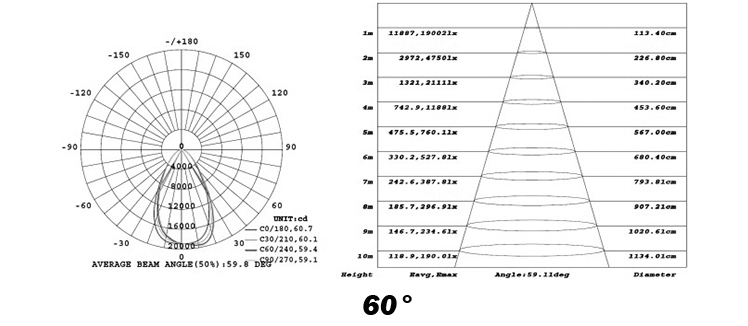

| Beam Angle | 60/90/120° Reflector |
| Warranty | 5 years |
| IP Classs | IP65 |
| IK Classs | IK08 |
| Qty/Cartons | 1Pcs/CTN GW3.3Kg |
| Carton Size | L370*W370*195mm |
Lighting Feature
| Power | CCT(nom) | Color Rendering Index | SDCM | NOM Luminous Flux(Efficient ) | Light Decay(10000hs) |
| 150W | 3000K | CRI>70 | <6 | 24750lm(165lm/w) | <3% |
| 4000K | CRI>70 | <6 | 25500lm(170lm/w) | <3% |
Operating and Electrical
| Power | 150W |
| Voltage | 90-305V/50-60Hz |
| PF | >0.9 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
Test Report
