20w aluminum led cob track lighting
Full Product Code:PS-TL-20W-X16D80- General Information
- Feature
- Installation
- Download
Decription
As you know, Shenzhen powerstar technology limited company can produce the good quality tracklight .We are a good tracklgiht factory .Our company set sales and produce and rearch in one .We pay attention to research the high end tracklight for our customers .Our tracklight use famous brand driver like lifud /trodinic/philip/Osram.So we can provide five years warranty .And we pass the CE/RHOS certification .You can trust my tracklight quality.
General Information
| Power | 20/25W |
| Housing Material | Die-casting Aluminum |
| housing Color | Black(9011)/White(9016) |

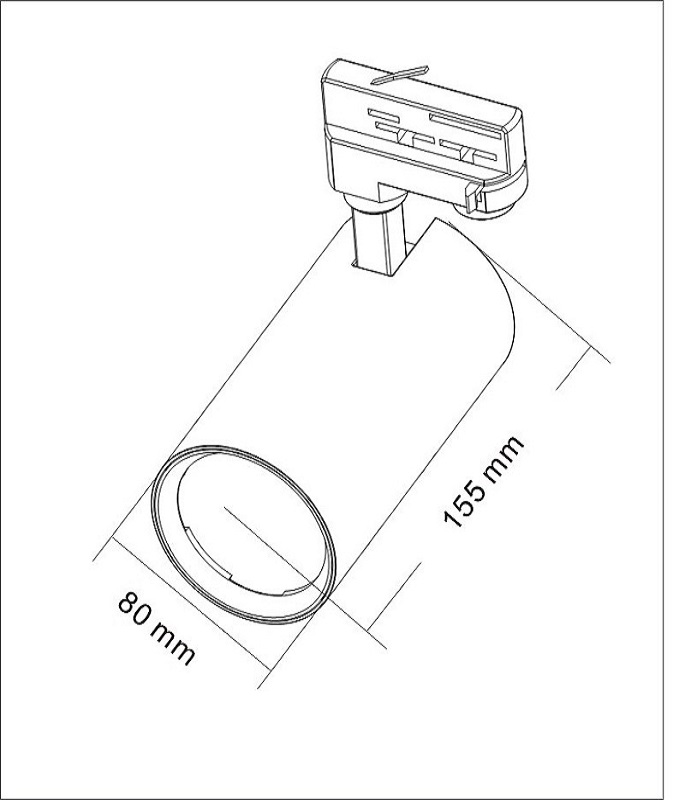

| Housing Size | 80*155mm |
| Light Source Brand | Citizen/Luminus/Cree COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Boke/Archi |
| Beam Angle | 15/24/38/60° Lens |
| UGR | 15 |
| Warranty | 5 years |
| Track Adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 15PCS/CTN GW14Kg |
| Carton Size | 46*28*27cm |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 20/25W | 3000K | Ra>80 | <3 | 90lm/w |
| Ra>90 | <3 | 80lm/w | ||
| 4000K | Ra>80 | <3 | 93lm/w | |
| Ra>90 | <3 | 83lm/w |
Operating and Electrical
| Power | 20/25W |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
l Using high end led cob citizen /luminus chip .high lumen output ,up to 110lm/w
l High-end spotlight with internal driver, Die-casting aluminum housing with convective holes for better heat dissipation
l Various beam angle 15°, 24°, 38°，60°, for option with uniform light distribution
l ugr less than 15,Anti glare lighting solutions
l 20w 25w lighting fixture , apply in all commercial lighting project
l Spot lighting has Comeptitive price,we can win together .
20w track spot lights use lens optics .it has uniform light output ,no glare .UGR less than 15 ,This lighting spot is good for your eyes and health. Some lighting project like office lighting and library lighting solutions will special require it .

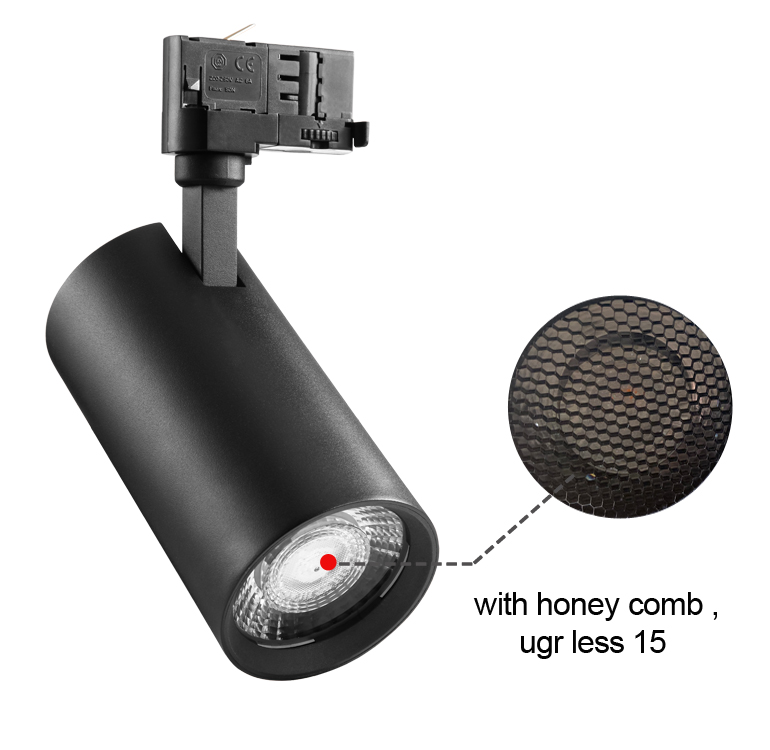

With honey comb anti glare lighting spot ,ugr can achieve less 15 .we test ies files for this spot bulb .And this low ugr track lighting with lens optics .It offers high output lighting that is free of projected heat and UV and IR radiation and lasts up to 50,000 hours.Suitable for residential or commercial settings
Lighting bulb can adjust ,Horizontal 355°, vertical 90° rotation, multi-angle to control .you can focus on your object in any direction .lighting is easily to handle .you just need to adjust correct direction before installation .
Powerstar lighting supplier very attach our spot light qulity control .we provide 5 year warranty for all my lighting solutions .we do many professional test for our lamp .for example IES ,LDT ,Integrating sphere,and specially we do temperature test, which many lighting factory dont do it .
Lighting Application
