130Lm/w led track light 35w
Full Product Code:PS-TL-30W/35W -X16A90H1- General Information
- Feature
- Installation
- Download
Description

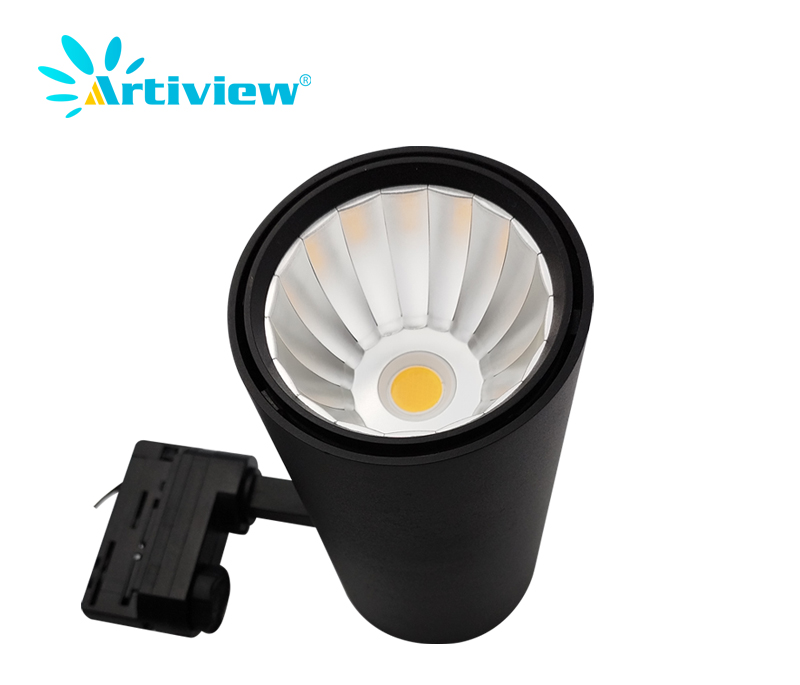

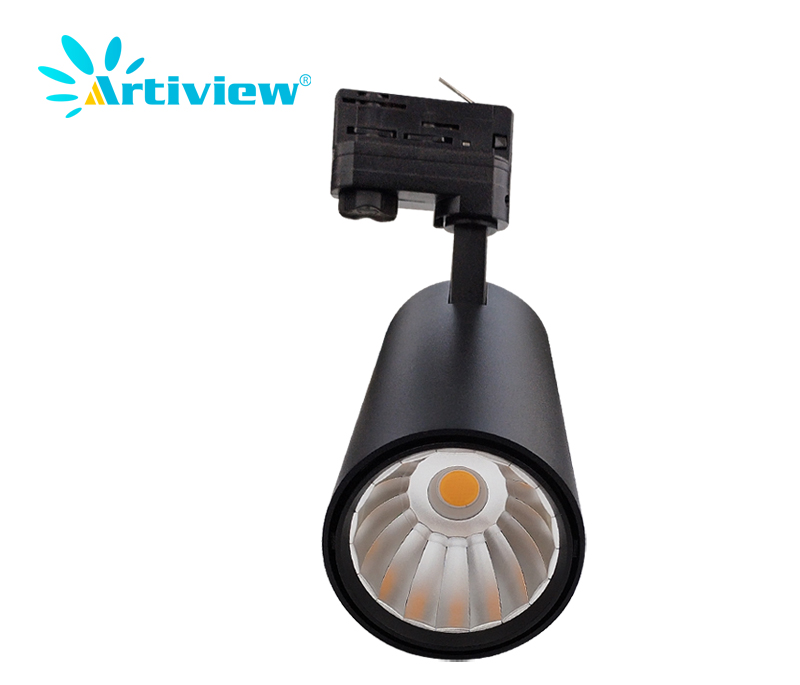

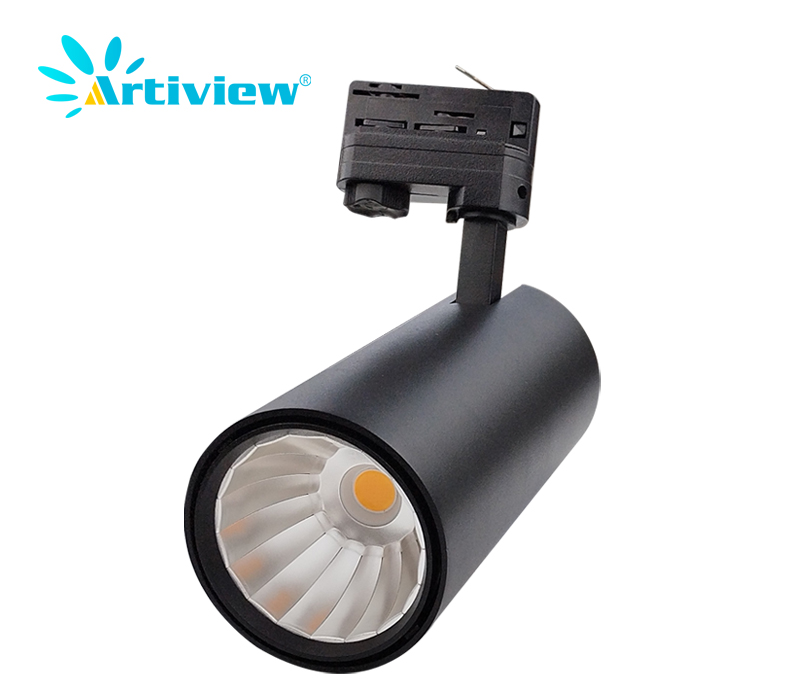

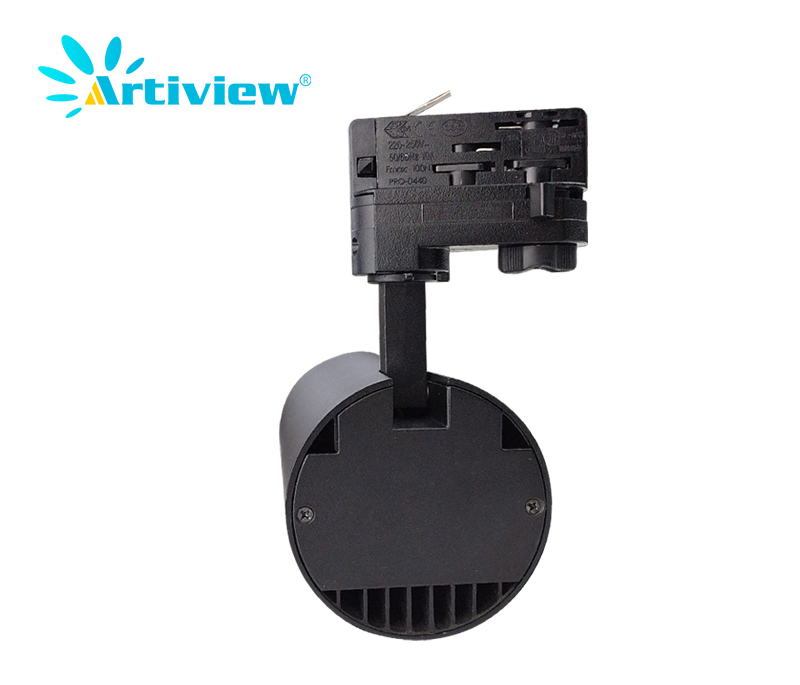

150Lm/w output high efficiency 35W led track light is standard classic COB LED track lighting series.
The track spot light use citizen/luminus 180lm/w chip make maximum 35w 5000lm to replace 70w heavy metal halid lamp perfectly.
And internal driver Osram/Philips/Tridonic as optional driver brand choice for 5 years waranty.
TUV/SAA/CE/CB/ENEC certification is the powerful symbol of product quality and a wide range of applications in the market.
General Information
| Power | 30W/35W |
| Housing Material | Die-Casting Aluminum |
| Housing Color | Black(9011)/White(9016) |
| Housing Size | 90x200mm |
| Light Source Brand | Citizen/Cree/Luminus COB |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Beam Angle | 20/30/45/60° Reflector |
| Warranty | 5years |
| Track Adapter | 2/3/4/6wires |
| IP Classs | IP20 |
| Qty/Cartons | 12PCS/GTN GW16Kg |
| Carton Size | 42*32*31cm |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 30W/35W | 4000K | Ra>80 | <3 | 130lm/w |
| 3000K | Ra>80 | <3 | 125lm/w |
Operating and Electrical
| Power | 30W/35W |
| Voltage | 220-240V/50-60Hz |
| PF | >0.95 |
| THD | <15 |
| Flicker | Flicker Free |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS |
| Smart control | Philips Hue Gateway/Amazon Alexa Plus/OSRAM Lightify/IKEA Gateway/Tuya Gateway |
| Dimmable | 0-10V/Triac/Dali/Push/Bluetooth/Wireless Remote |
l High end citizen /luminus chip ,SDCM<3
l 98% reflectity reflector,lumen can be 130lm/w
l Samrt lighting 30w spot lighting fixture ,we do 0-10v,triac,dali ,bluetooth, DMX ,zigbeer casmbi Dimmable control .
l 2/3/4/6 wires track install, also can be surface mounted and recessed options
l Flicker free driver ,THD <15,5 year warranty
l 20/30/45/60 degree flector options ,achieve foucs lighting effect .

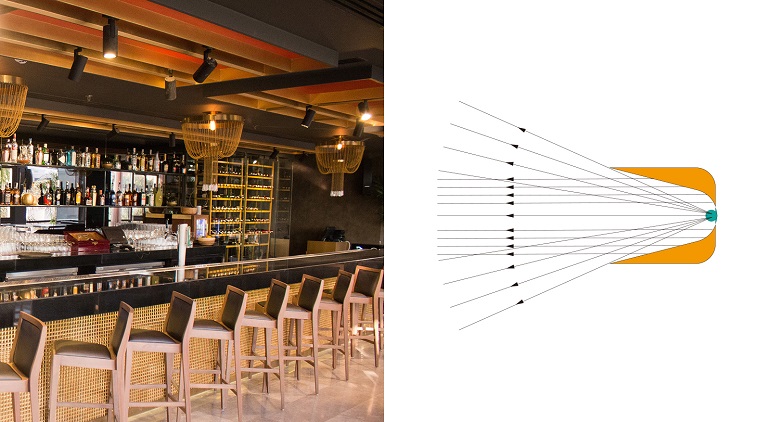

130LM/W 25w spot commercial lighting , powerstar tracklighting fixture use 98% relectity special aluminum reflector .without pc cover can be achieve 130lm/w .spot lighting degree options is 20/30/45/60°.our lighting lamp can do foucs lighting effect .it will make your lighting space more bright and comfortable.
Our 30w 35w lighting options .size is 90*200mm ,so spot lighting bulb can be do multi function dimmable smart light .this light also can do horizontal 355°,vertical 90°adjustable.you can spot to any area you want to .
Powerstar spot lighting all using high end aircraft aluminum material , good quality housing and accurate design to do best heat dissipation.our patented lighting spot all produce by ourselves .we do R&D tracklight supplier .we also can provide customer -made lighting design for special project require .
30w high performance Smart lighting ,we can do potentiometer dimmable which is back button to switch dimmable .powerstar lighting manufacturer also can provide triac,0-10v ,dali ,wifi,2.4G,tuya,bluetooth mesh ,remote control ,zigbeer ,DMX ,etc samrt dimmable .Dimmable we help lighting customer to do brightness and cct changeable Function.
Lighting Application
