10w track spot light bulb
Full Product Code:PS-TL-10W-X16A60- General Information
- Feature
- Installation
- Download
Decription
CRI80/90/97tracklight can meet different guests requires. Use CRI 97 special tracklight can make the objects looks more real and beautiful.Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we pass the CE/RHOS certification. You can trust my tracklight quality. We are led tracklight factory. We can make high end tracklight for our customers. Our factory covers an area of 2000 square meters. And we can produce ten million per mounth.
General Information
Power | 10W |
Housing Material | Die-Casting Aluminum |
Housing Color | Black (9011) /White( 9016) |

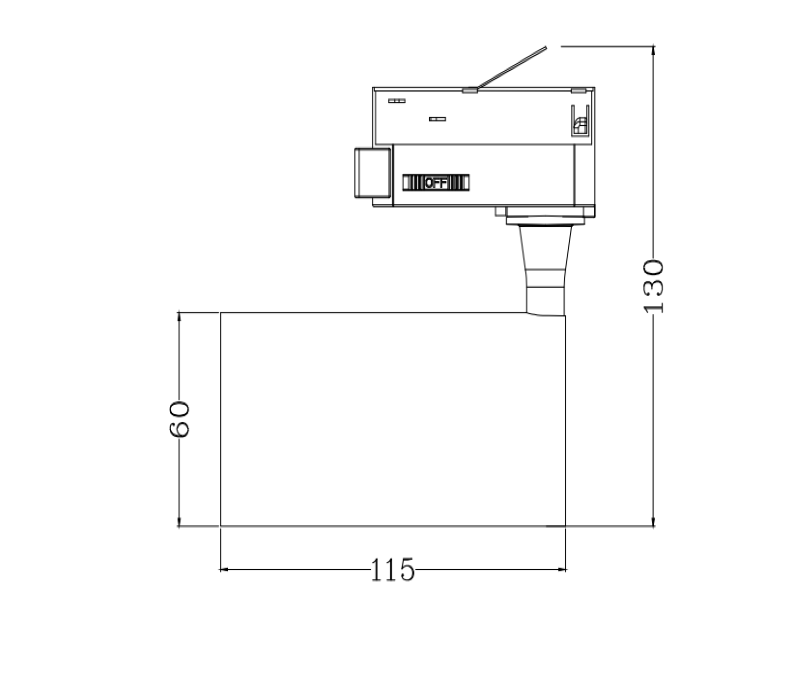

Housing Size | 60x115mm |
Light Source Brand | Citizen/Cree/Luminus Cob |
CCT | 2700/3000/3500/4000/5000/5700K |
Driver Brand | Eaglerise/Tridonic |
Beam Angle | 15/24/38° Reflector or lens |
UGR | 15 |
Warranty | 5years |
Track Adapter | 2/3/4wires |
IP Classs | IP20 |
Qty/Cartons | 15Pcs/CTN GW10Kg |
Carton Size | 46*28*27cm |
Lighting Feature
Power | CCT | CRI | SDCM | Luminous Flux |
10W | 3000K | Ra>80 | <3 | 90m/w |
Ra>90 | <3 | 80lm/w | ||
4000K | Ra>80 | <3 | 96lm/w | |
Ra>90 | <3 | 88lm/w |
Operating and Electrical
Power | 10W |
Voltage | 220-240V/50-60hz |
PF | >0.95 |
THD | <15 |
Flicker | Flicker Free |
Certification | TUV/SAA/CE/CB/ENEC/RoHS |
Using high end led cob citizen /luminus chip .high lumen output
High-end spotlight with internal driver, die casting aluminum housing with convective holes for better heat dissipation
Various beam angle 15°, 24°, 38°, for option with uniform light distribution
2/3/4 wires aviable ,widely used all over the world .
Lower ugr design ,ugr less than 17
7w 10w available ,specially apply in reaturant lighting and resident lighting project solutions
7w led track lights use high quality chip , Built-in power design, Simple and beautiful,Lighting using aircraft aluminum material ,Lighting fixture on 11 processess of spraying treatment and acid pickling cleaning, It also passed salt spray test standards.So we can promise our client 5 year warranty for their lighting projects.
Adjustable spot light can do 355 degree horizontal,vertical 90 degree rotation .You can adjust spot to foucs your goods for restaurant lighting ,Light can make your dishes more clear and looks great .Powerstar lighting team recommend you use 3000k 90Ra in this lighting space .It will give all people warm feeling .Then they can enjoy their food in resturant.
Our pendant lighting use high quality aluminum , And die casting aluminum to complete lighting fixture . This lighting design is convection design for better dessipation.Powerstar lighitng supplier has more than 10 year expenrience in commercial lighting .Lamp lifespan is more than 50,000hours .We dont have got any claim about lamp fixture is damaged .Because powerstar commercial lighting manufacturer is very strict with quality control process .
This 7w 10w indoor track lighting fixtures use high-quality reflector optical accessories, lighting lamp reflector have 15/24/38/60 degree options .Foucsing light can help you to spot object by using different degree . CCT Full range is from 1000 to 9000k,Most lighting normally use warmwhite 3000k ,netural white 4000k ,cool white 6000k. Then you can choose correct cct for your lighting project solutions.
Lighting application
