Full Product Code:PS-TL-30W-X16A85
  • General Information
  • Feature
  • Installation
  • Download

Decription

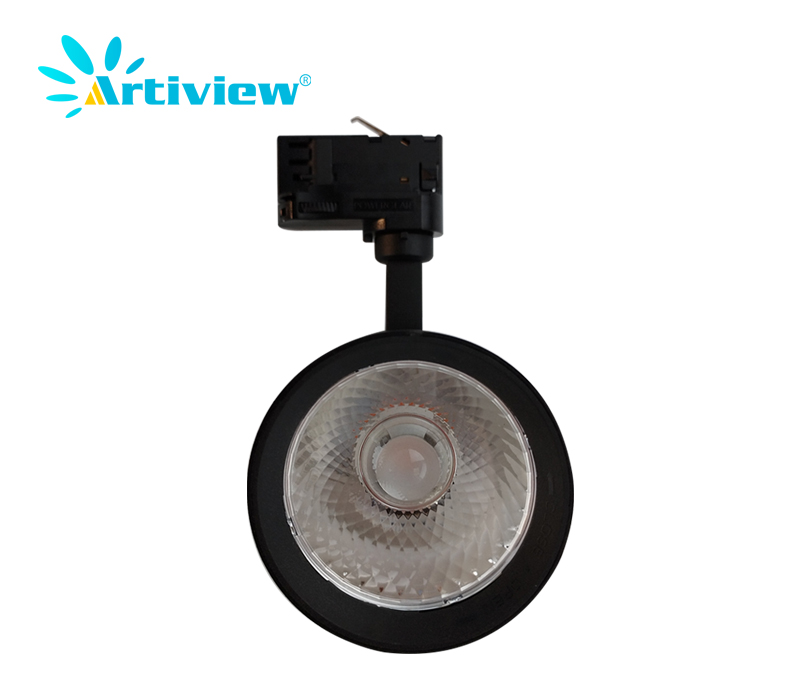

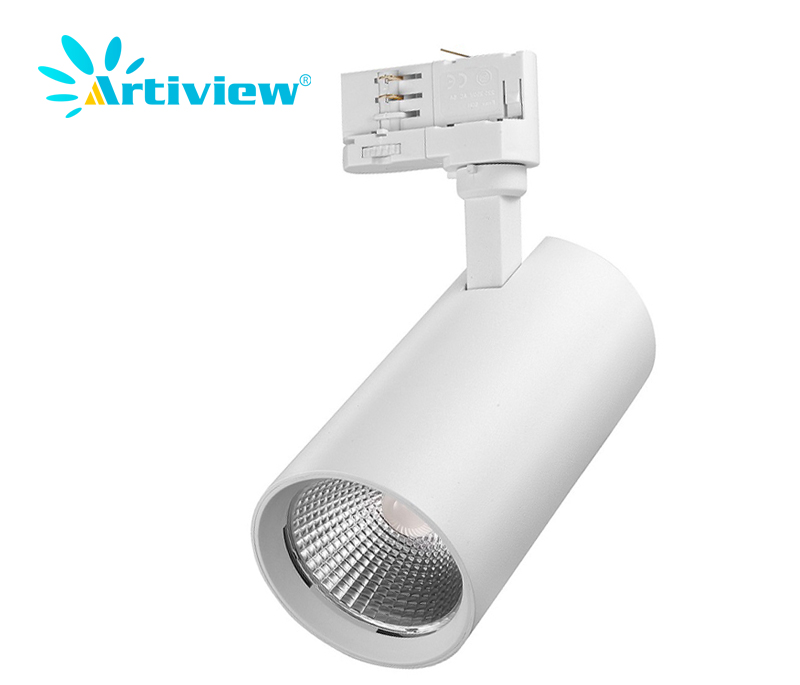

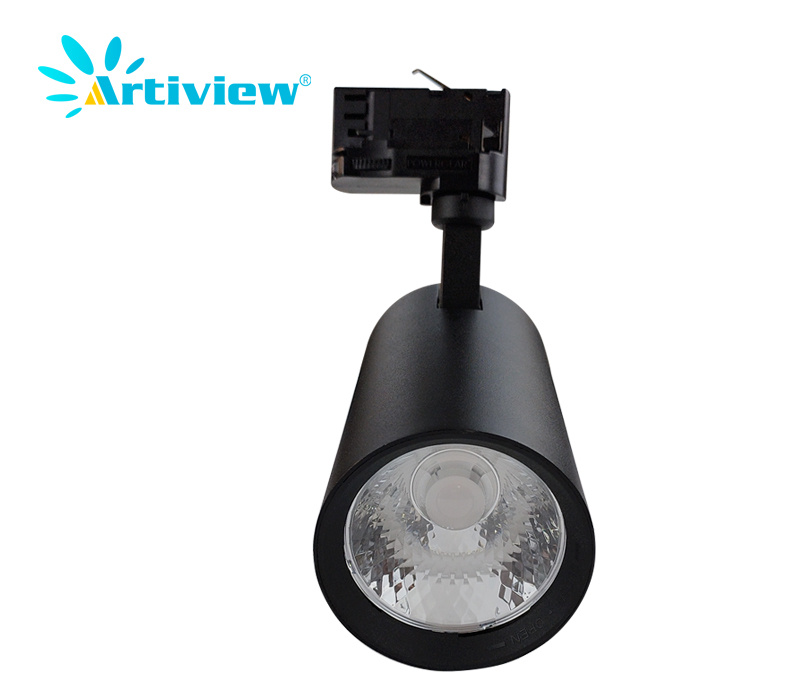

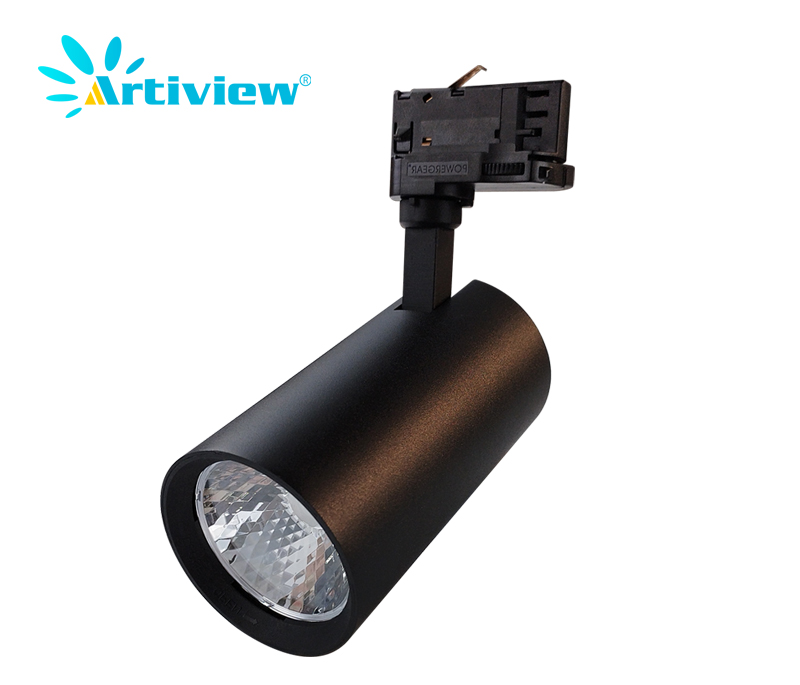

Powerstar eco-friendly led track light 30w with size D80xH155mm,Internal driver.

Beam angle 15/24/38/60 degree for optional choice, light efficient max. 125lm/w@CRI90.

The LED track light fixture 30w can make 35w with external driver glabal brand.

The price of 30W is very competitive, can make 25w/20w as good choice, 30W UGR less than 19.

Fast lead time 3-7days because of 20000pcs stock.


General Information

Power 30W
Housing MaterialDie-Casting Aluminum
Housing ColorBlack(9011)/White(9016)
Housing Size85*170mm
Light Source BrandBridgelux/luminus/Citizen COB
CCT2700/3000/3500/4000/5000/5700k
Driver BrandArchi/Boke
Beam Angle15/24/38° Reflector
UGR15
Warranty5 years
Track Adapter2/3/4/6wires
IP ClasssIP20
Qty/Cartons15Pcs/CTN GW14Kg
Carton Size46*28*27cm


Lighting Feature


PowerCCTCRISDCMLuminous Flux
30w3000KRa>80<3103lm/w
Ra>90<398lm/w
4000KRa>80<3103lm/w
Ra>90<398lm/w


Operating and Electrical


Power 30W
Voltage220-240V/50-60Hz
PF>0.95
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS




Using high end led cob citizen /luminus chip .high lumen output ,up to 110lm/w

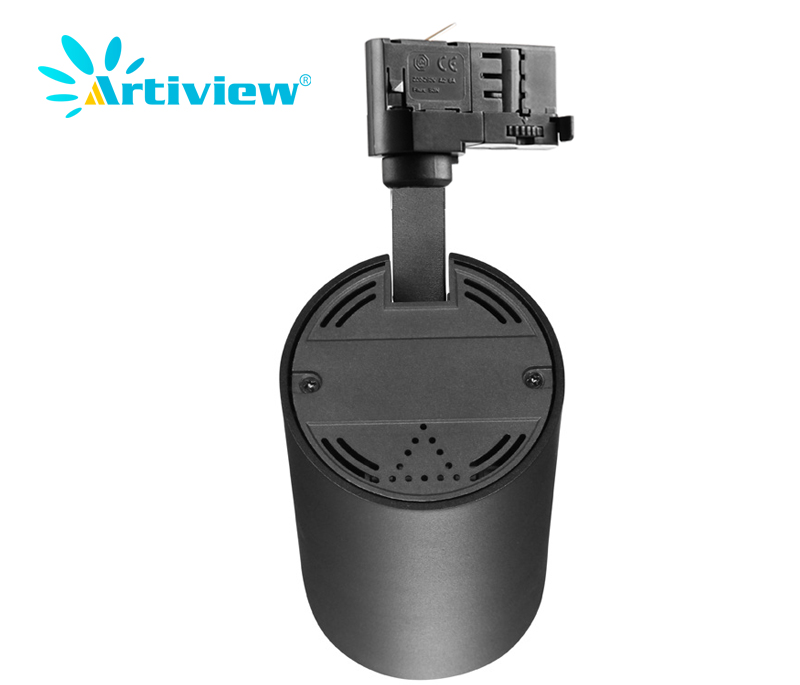

High-end spotlight with internal driver, Die-casting aluminum housing with convective holes for better heat dissipation

Various beam angle 15°, 24°, 38°60°, for option with uniform light distribution

ugr less than 15,Anti glare lighting solutions

30w  lighting fixture , apply in all commercial lighting project

Spot lighting has Comeptitive price,we can win together .

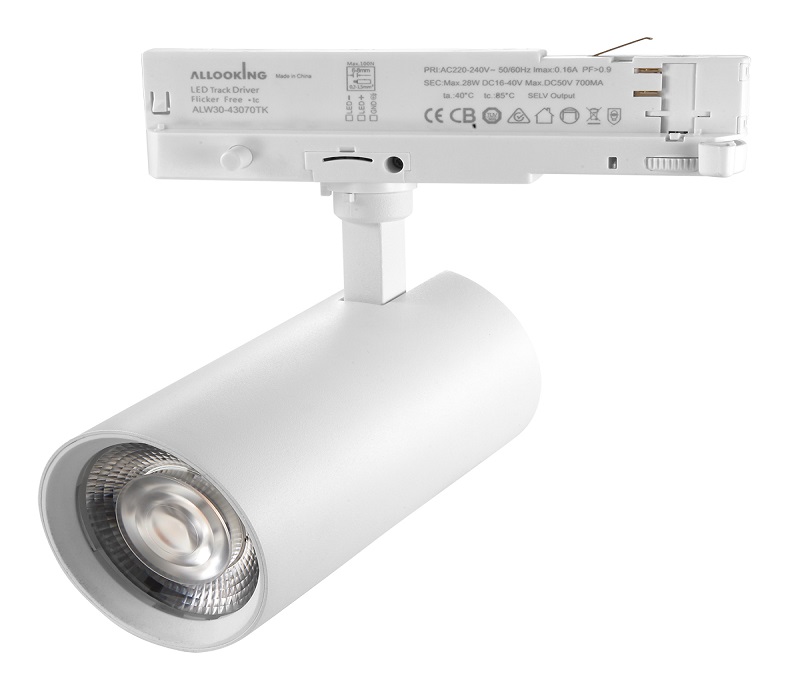

20w  led track lighting  fixture flicker free

20w track spot lights adopt professional LED light source, Color tolerance is controlled within 3 McAdam steps, below BBL, So that the lighting  effect can increase customers' desire to buy . Lighting CCT Range from 2700k to 6500k ,CRI have 80/90/97Ra three options .In different lighting project ,Powerstar lighting will provide different recommend solutions for you .

20w  led track lighting  fixture flicker free

20w spot lighting fixture using high end  aircraft aluminum material, Track lighting bulb has convection design with good heat dissipation , Our lighting housing fixture IP class is IP40. It means it can dust prevention.This spot lamp normally applied in commercial indoor area .So IP 40 is enough .Besides spot lighting housing color using RAL Color which is international spray painting color standards ,black is RAL 9011 ,White is 9016.

20w  led track lighting  fixture flicker free


Lighting bulb can adjust ,Horizontal 355°and vertical 90° rotation, multi-angle to control .you can focus on your object in any direction .lighting is easily to handle .you just need to adjust correct direction before installation .



20w  led track lighting  fixture flicker free

Powerstar lighting supplier very attach our spot light qulity control .we provide 5 year warranty for all my lighting solutions .we do many professional test for our lamp .for example IES ,LDT ,Integrating sphere,and specially we do temperature test, which many lighting factory dont do it .




led track light 30w
