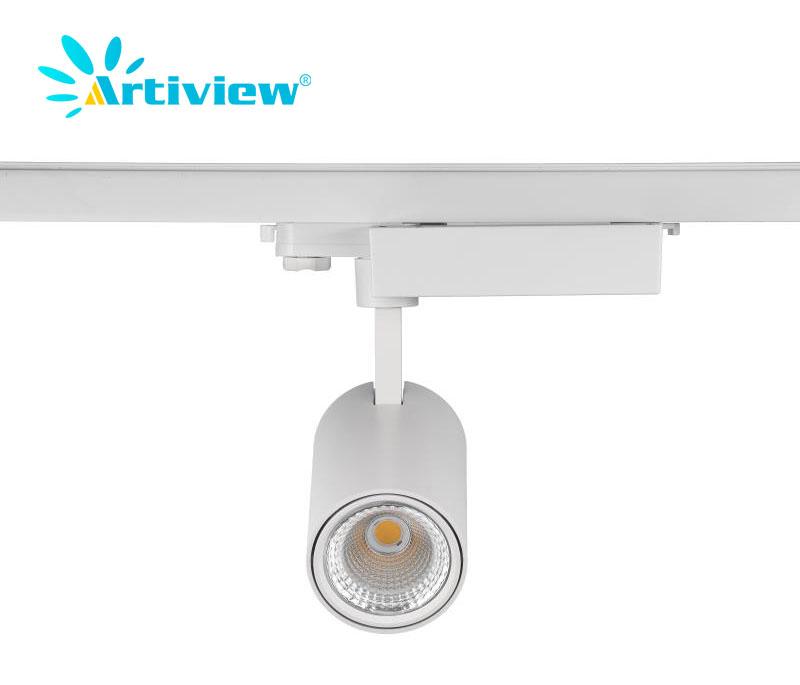

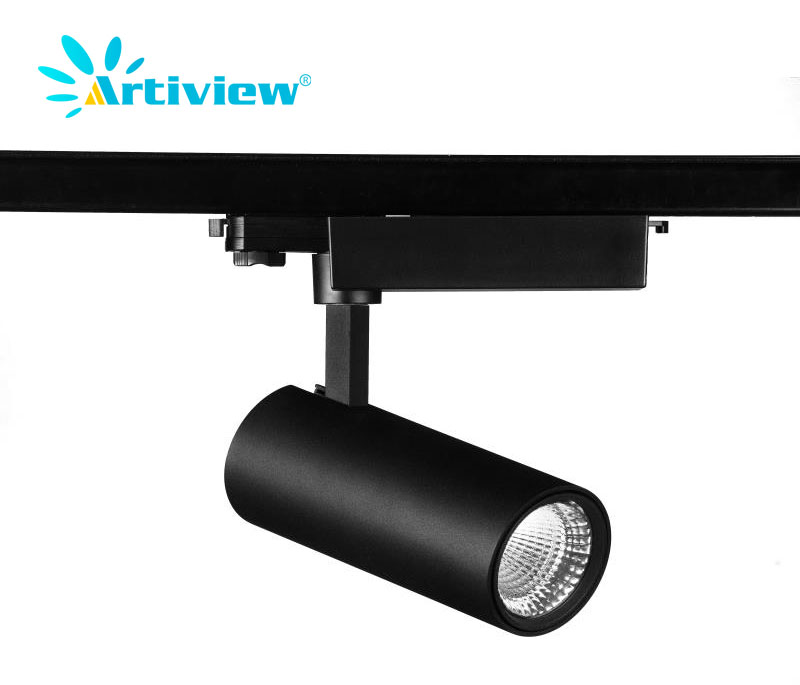

40W/50W track light spotlight cob
Full Product Code:PS-TL-40W/50W-X16B90- General Information
- Feature
- Installation
- Download
Description
Powerstar is commercial led lighting factory, specialized in led track lighting system, we pay attention to research the high end led track spotlight for our customers. Our track led light use famous brand driver like lifud /trodinic/philip/Osram, we can provide 5 and 7 years warranty. And we passed the CE/RHOS/TUV/SAA/CB certification.
For this 40W led spotlight track with external driver, the heat dissipation is very good, and we use Citizen V6/Luminus COB led chip, SDCM<3, the CCT is below BBL, the color of light is very comfortable, customers can feel very relax and comfort when shopping.
General Information
Power | 40W/50W |
Housing material | Die-Casting Aluminum |
Housing Color | Black(9011)/White(9016) |
Housing Size | 90x200mm |
Light Source Brand | Citizen/Cree/Luminus COB |
CCT | 2700/3000/3500/4000/5000/5700K |
Driver Brand | Tridonic/Osram/Philips/Boke |
Optics type | Reflector |
Beam Angle | 15/24/38/60° Reflector |
UGR | 19 |
Warranty | 5years |
Track Adapter | 2/3/4 wires |
IP Classs | IP20 |
Qty/Cartons | 12Pcs/CTN GW18Kg |
Carton Size | 51*42*27cm |
Lighting Feature
Power | CCT | CRI | SDCM | Luminous Flux |
40W/50W | 3000K | CRI>80 | <3 | 121lm/w |
CRI>90 | <3 | 104lm/w | ||
CRI>97 | <3 | 93lm/w | ||
4000K | CRI>80 | <3 | 124lm/w | |
CRI>90 | <3 | 105lm/w | ||
CRI>97 | <3 | 95lm/w |
Operating and Electrical
Power | 40W/50W |
Voltage | 220-240V/50-60Hz |
PF | >0.95 |
THD | <15 |
Flicker | Flicker Free |
Certification | TUV/SAA/CE/CB/ENEC/RoHS |
Dimmable | Triac |
40/50W LED Track Light Features
1.40/50W reach 5500Lm output light efficiency.
2. 15°/24°/38°/60° lighting beam angle for options.
3.External driver design, fast heat dissipation.
4.Citizen/Luminus/Cree/Bridgelux brand chip.
5.5 years warranty.
Create healthy and comfortable quality lighting.
Lighting quality refers to whether the lighting source meets the visual function, visual comfort, safety and visual aesthetics of lighting indicators. Lighting quality is related to the comfort and health of our living environment. The correct application of good lighting quality indicators, will bring a new feeling to your lighting space, especially in the era of LED lighting, lighting quality performance is extremely important, the use of lighting quality indicators to buy LED light source products, will bring twice the result with half the effort lighting effect. Our track lights use the brand Citizen, luminusLED, UGR<19, SDCM<3, the light is very soft, comfortable, no light spot.
It supports rotation of 90° in vertical direction and 355° in horizontal direction.
Malls with shelves, stacks, side yards, center islands, and checkout counters ...... are typical lighting spaces that combine different product parameters based on accent and base lighting. Commodity visit will move position according to different display design, our track light can that rotate 90° in the vertical direction and 355° in the horizontal direction, so that the light can be freely oriented in any direction, well meet the mall or mobile goods lighting needs.
LED track light application:
The track light system breaks through most of the standard alternative light source forms on the market, the power is limited, the total luminous flux is not enough, the color rendering is not good, the lighting quality can not be guaranteed and other problems, 45W power luminous efficiency can reach 110lm/ W, luminous flux is nearly 5000lm, brightness fully meet the needs of most commercial lighting, light color consistency is good, Color tolerance is less than 3, the same batch of goods do not have to worry about color difference, the production process is completely in accordance with the ISO9001 standard test, do not have to worry about quality problems, high light efficiency, good color rendering, low brightness, long life, used in shopping malls, supermarkets, 4S shops, fashion shops and other commercial lighting places.
