6° 7w narrow beam angle led smd track spot lighting

  • General Information
  • Feature

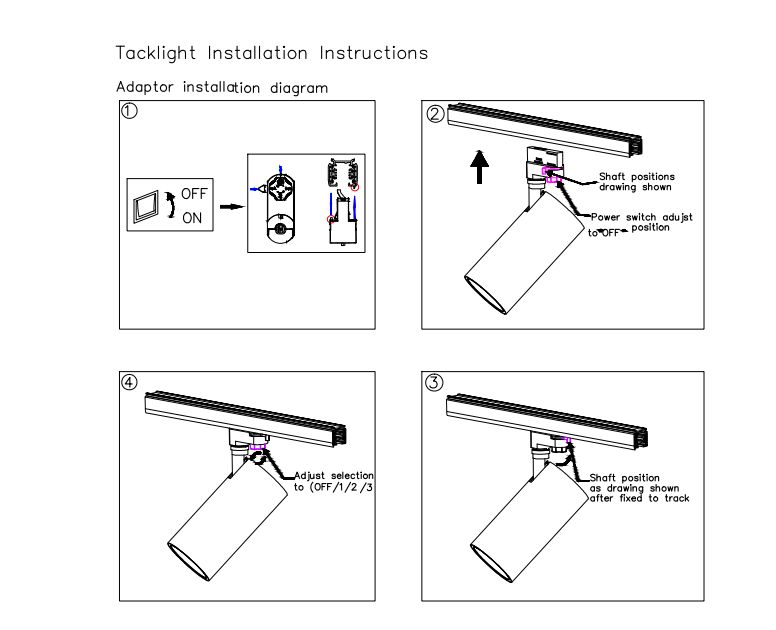

  • Installation
  • Download

Description

Shenzhen powerstar technology limited company is an good tracklight supplier in China. We set sales and produce and rearch in one. Our tracklight use citizen chip. Our tracklight use famous brand driver like lifud /trodinic/philip/Osram. So we can provide five years warranty. And we passed the CE/RHOS certification. You can trust my tracklight quality.


General Information

Power 7W
Housing MaterialDie-Casting Aluminum
Housing ColorBlack(9011)/White(9016)
Housing Size55*120mm
Light SourceSMD
CCT2700/3000/3500/4000/5000K
Beam angle6° Lens
SDCM<3
THD<15
CRI83Ra
Warranty5years
Track Adapter 2/3/4 wires
IP ClasssIP20


Lighting Feature

PowerCCT(nom)Color Rendering IndexSDCMNOM Luminous Flux(Efficient )
7W3000KCRI>83<3350 Lm50lm/w)
4000KCRI>83<3371 Lm(53 lm/w)


Operating and Electrical

Power 7W
Voltage220-240V/50-60Hz
PF>0.9
THD<15
FlickerFlicker Free
CertificationTUV/SAA/CE/CB/ENEC/RoHS

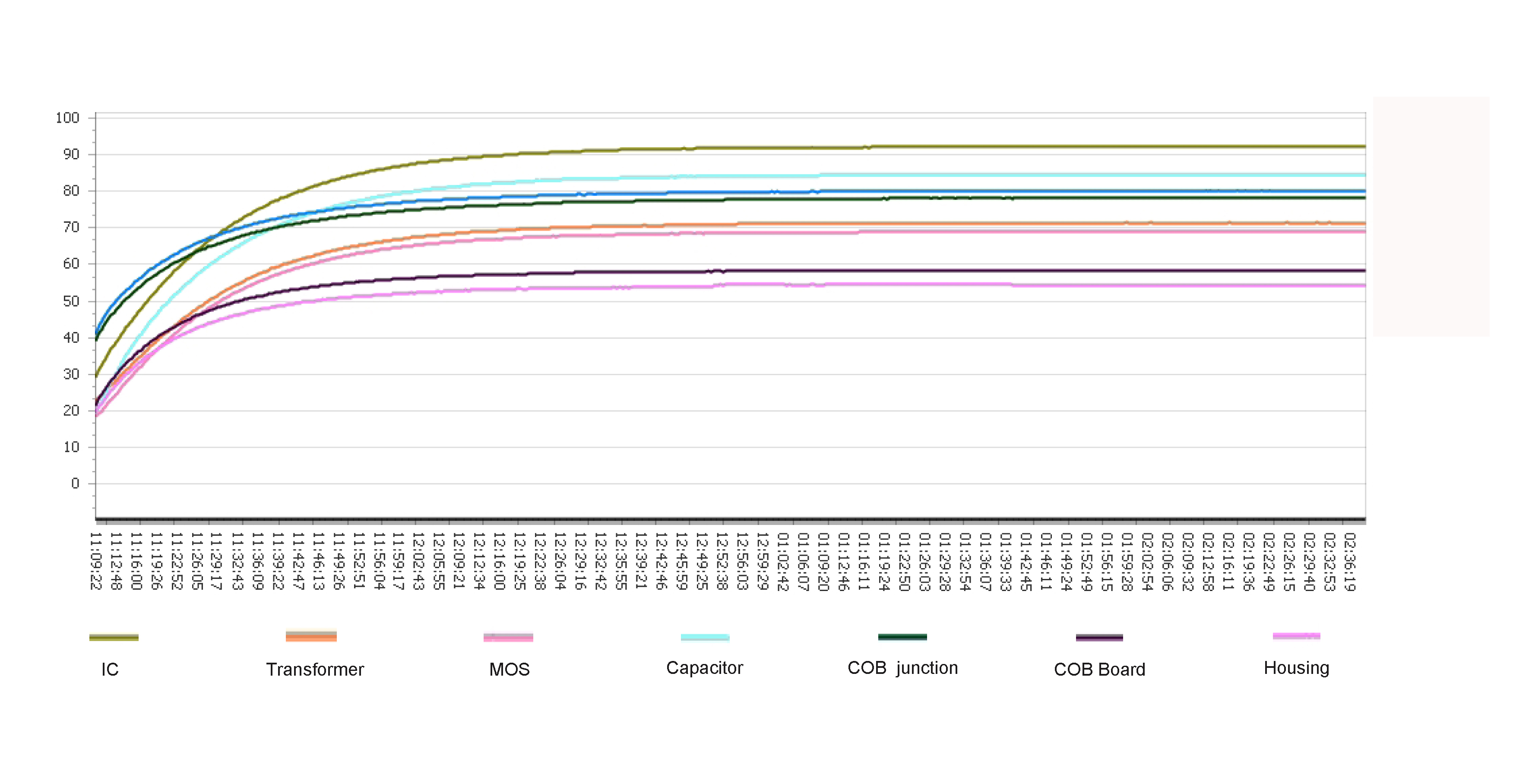

 Temperature Test

12w led track lighting

Temperature


  • The testing is operated at 25℃

    The lifetime of capacitol,minimum of 8000 hours if operated at 105 ℃,will be doubled whenever the temperature drops 10℃

  • The highest withstand temperature of IS ,MOS could be 120℃

    The highest withstand temperature of led junction temperature is 150℃
