suspendant pendant surface mounted led downlight
Full Product Code:PS-MDL-4'20W-C21- General Information
- Feature
- Installation
- Download
General Information
| Power | 20w |
| Housing material | AL |
| Housing Color | white/black |

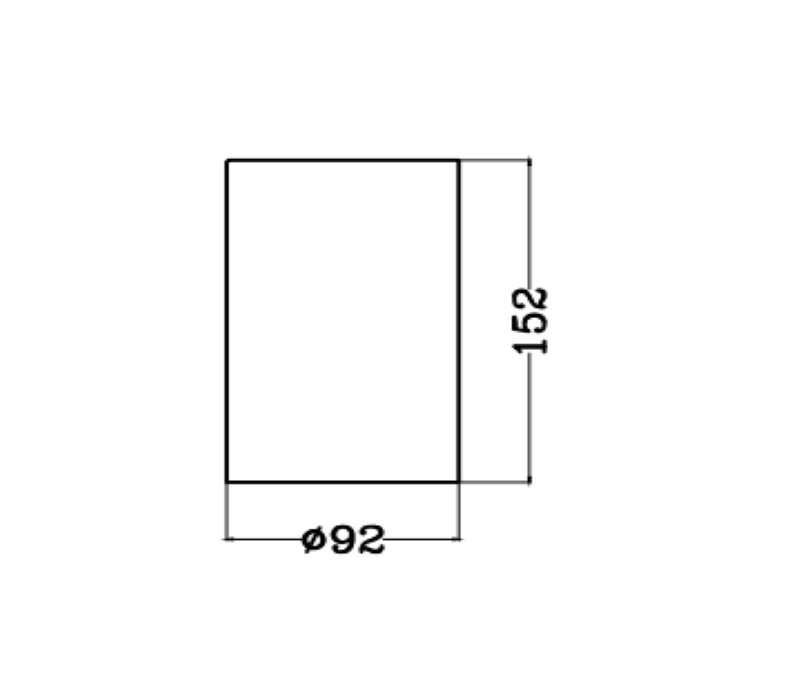

| Housing Size | 92*152mm |
| Light Source | COB |
| LIGHT Source Brand | Citizen/Cree/Luminus |
| CCT | 2700/3000/3500/4000/5000/5700k |
| Driver Brand | Tridonic/Osram/Philips/Boke |
| Optics Type | Reflector |
| Beam Angle | 60 |
| Warranty | 5years |
| Test Information | test ball, IES/Ldt |
| Storage Temperature | minus40 65 |
| Working Temperature | minus20 45 |
| IP Classs | IP44 |
| Application | indoor |
Power and Size Available
| Item | Size | Watt |
| PS-MDL12R2 | D74*147MM | 12w |
| PS-MDL15/20R2.5 | D92*152MM | 15w/20w |
| PS-MDL25R3 | D115*135MM | 25w |
| PS-MDL30R4 | D140*160MM | 30w |
| PS-MDL40R5 | D171*198MM | 40w |
| PS-MDL50R6 | D186*214MM | 50w |
Lighting Feature
| Power | CCT | CRI | SDCM | Luminous Flux |
| 12-40w | 3000K | Ra>80 | <3 | 122lm/w |
| Ra>90 | <3 | 104lm/w | ||
| Ra>97 | <3 | 93lm/w | ||
| 4000K | Ra>80 | <3 | 125lm/w | |
| Ra>90 | <3 | 106lm/w | ||
| Ra>97 | <3 | 96lm/w |
Operating and Electrical
| Power | 12-40w |
| Voltage | 220-240v/50-60hz |
| PF | >0.95 |
| Power efficient | 0.88-0.91 |
| THD | <10/<15 |
| Flicker | YES/NO |
| Certification | TUV/SAA/CE/CB/ENEC/RoHS/GS/TUV |
| Dimmable | NO/0-10V/Triac/dali |
| Life Time | 64000hrs |
Decription
Shenzhen powerstar technology limited company is an good downlight supplier in china.This type downlight we designed for offical project .It often be used in the airport or subway or overbridge.We set sales and produce and rearch in one.Our downlgiht often use citizen chip, .Our downlight use famous brand driver like lifud/trodinic/philip/Osram. So we can provide five years warranty .And our donwlight has passed the CE/RHOS certification.You can trust my downlight quality.

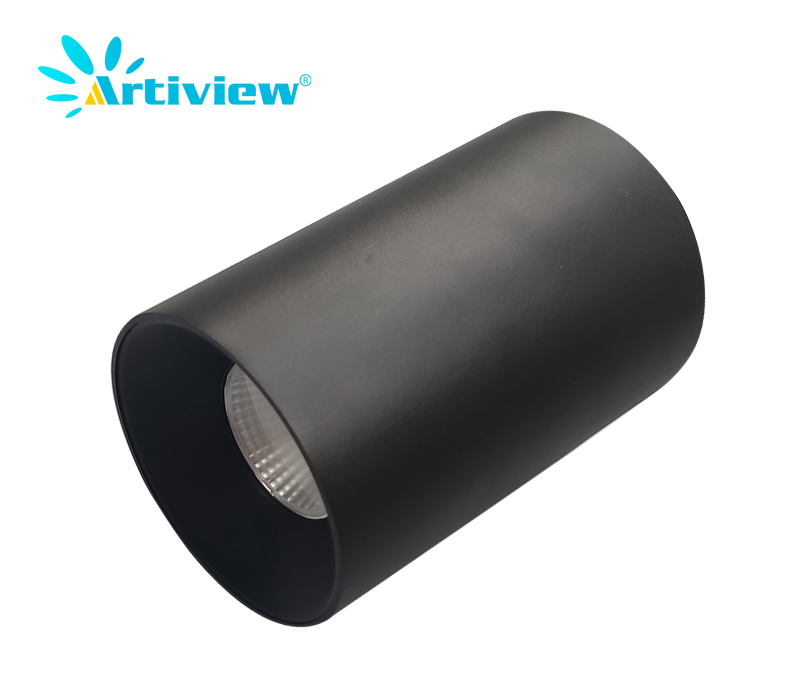

l Die-cast aluminum housing, good heat sink

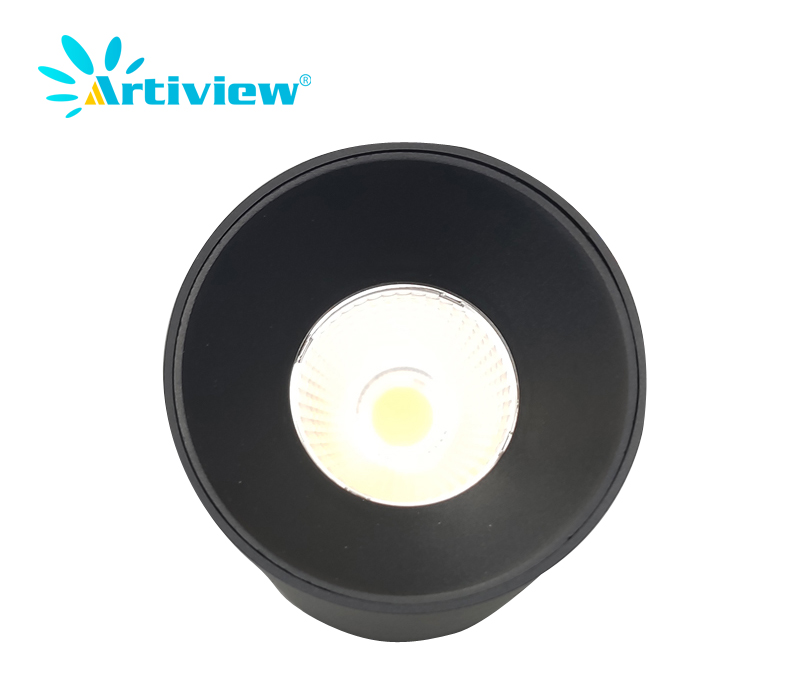

l Reflector optics ,have 15/24/38/60° beam angle
l High end SDCM Less 3 cob chip , soft and comfortable light output
l Lumen efficiency up to 110lm/w
l TUV CE, CB, SAA and RoHs certified

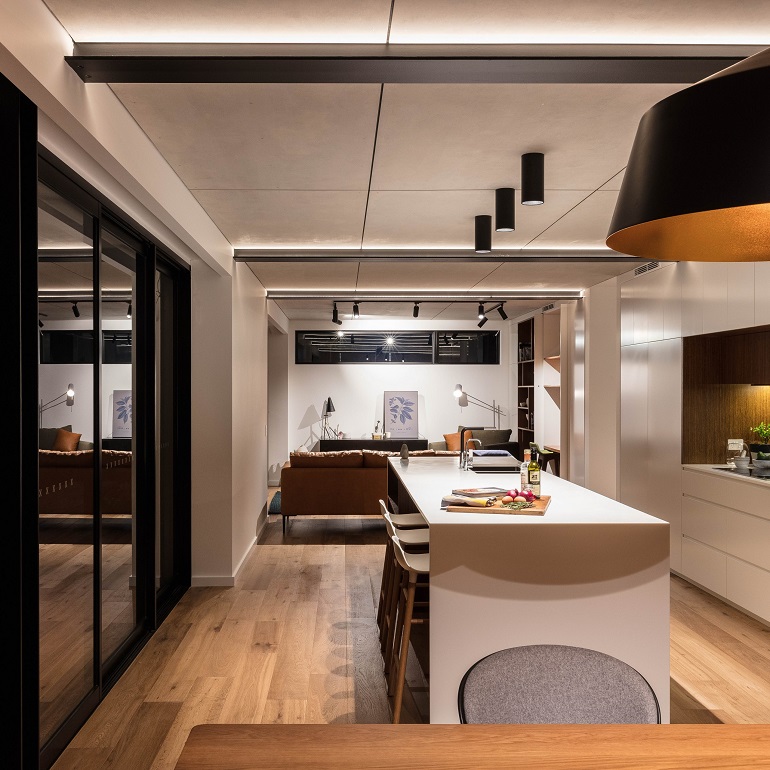

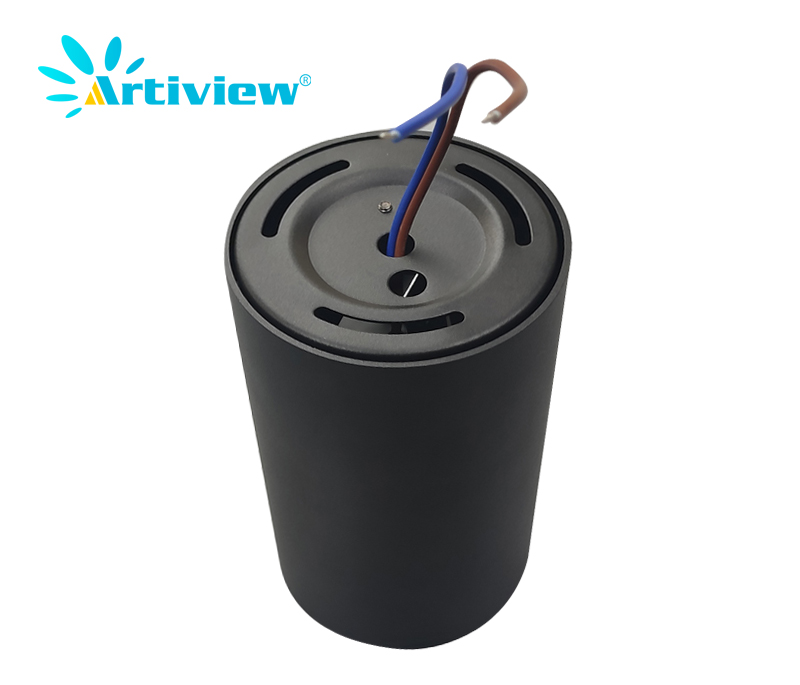

This cylindrical surface mounted downlight combines a striking design with beautiful colour rendering to enhance any room. Its surface mounted construction makes this downlight ideal for installing onto concrete ceiling surfaces whether it is in a living area or hallway.

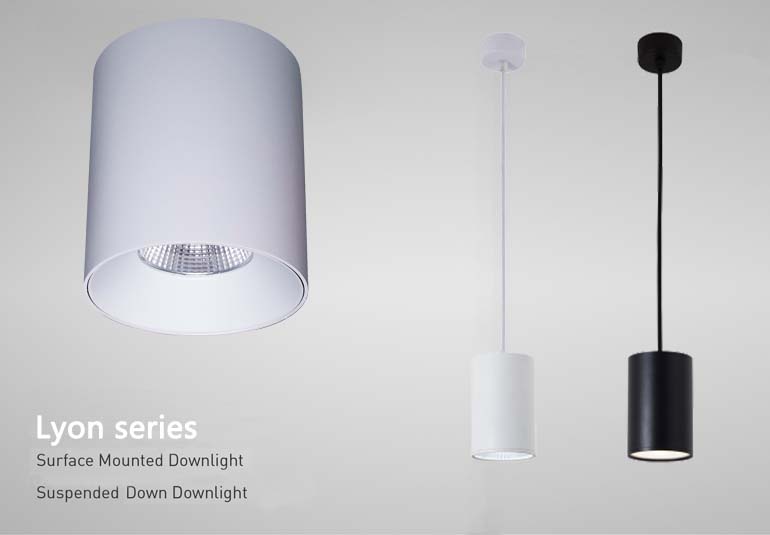

Our lyon series surface mounted have different install like surface mounted and suspended in the ceiling . surface mounted downlight can be applied in living room and shopping mall etc ,for pendanted downlight we advise for reception in hotel or bar lighting solutions .
Flicker free driver for surface mouted lamp .when you take a picture by phone you can testing light is flicker or not .powerstar all downlight provide no flicker options .In order to protect your eyes in some lighting space whch you will stay for long time .

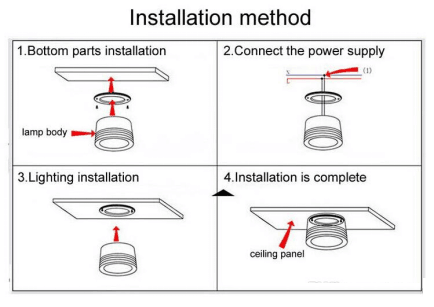

Surface mounted install
Suspend install
